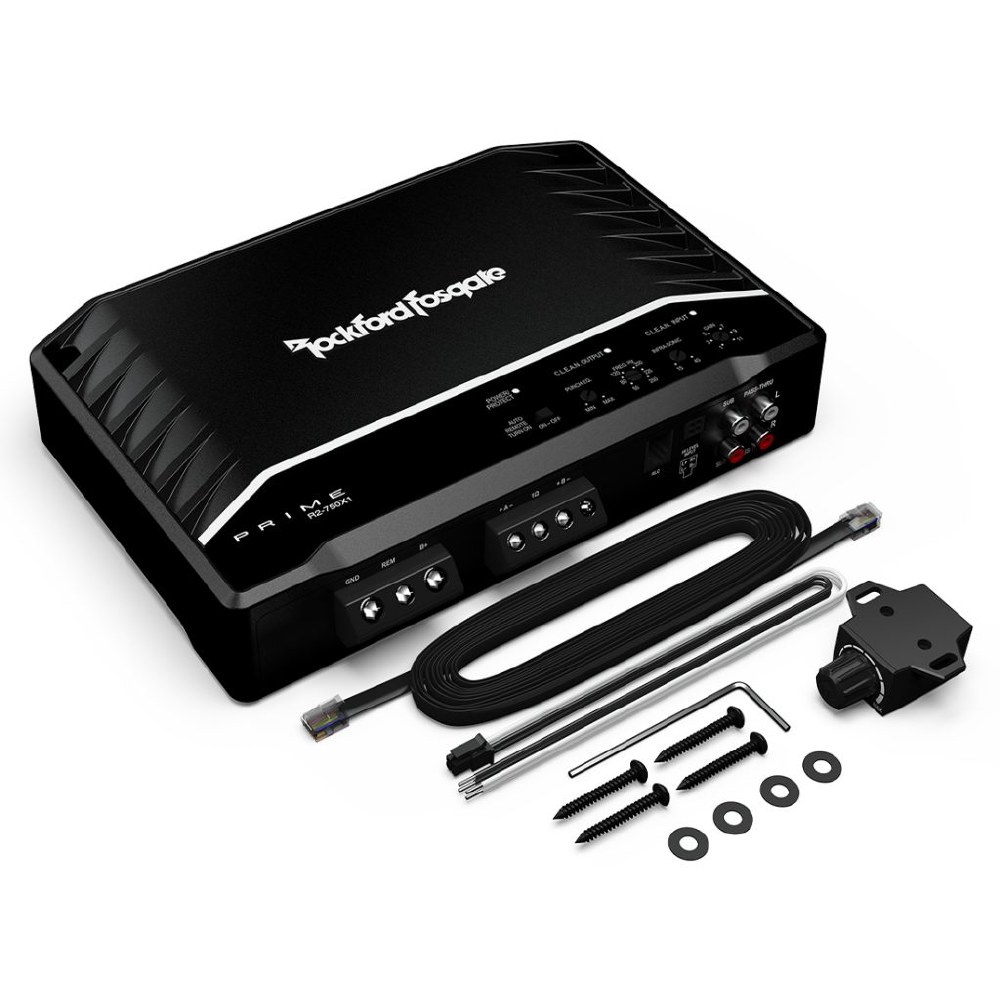

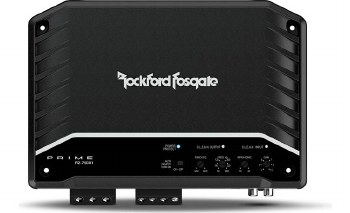

ROCKFORD FOSGATE
R2-750X1
Mono amplifier
250x1 @ 4O, 500x1 @ 2O, 750x1 @ 1O
250x1 @ 4O, 500x1 @ 2O, 750x1 @ 1O
- Variable Input Gain adjustment level
- High Level Input Capable
- Balanced Differential Inputs with RCA Pass Through Outputs
- Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
- Includes RLC Remote Level Control
- Top Mounted Control Panel
- Features C.L.E.A.N. Set-up
- Variable Infrasonic Filter
- Short Circuit & Over Current Protection
- Cast aluminum heat sink
- Continuously Variable On Board Punch EQ
- Rollback Protection
- CEA-2006 Compliant & CE Compliant
- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
- Class-D Topology
- 1 Year Warranty
- Cta-2006 Compliant
- Number of Channels1
Total Power
- (Sum of Rated Power)750 Watts
Rated Power
- (RMS Continuous Power)250 Watts x 1 @ 4Ω
- 500 Watts x 1 @ 2Ω
- 750 Watts x 1 @ 1Ω
Dynamic Power
- (PVC/PowerCube®)300 Watts x 1 @ 4Ω
- 545 Watts x 1 @ 2Ω
- 830 Watts x 1 @ 1Ω
- BridgeableNo
- Frequency Response20 Hz - 250 Hz
- Input SensitivityLow-Level: 150 mV - 4 V
- High-Level: 450 mV - 12 V
- Circuit Topology ClassClass-D
- Efficiency (average)
- Total Harmonic Distortion (THD+Noise)4Ω: <1.0%
- 2Ω: <1.0%
- 1Ω: <1.0%
- Signal InputLow-Level: 2 RCA
- High-Level: 4-Pin Molex
- Signal OutputLow-Level: 2 RCA
- (Pass-Thru active with RCA or Hi-Level input)
- Tone Controls0 to +18 dB @ 45 Hz
- Crossover ControlsLow-Pass:
- 50 Hz - 250 Hz @ 12dB/Octave Butterworth
Infrasonic:
- 15 Hz - 40 Hz @ 12dB/Octave Butterworth
- Remote ControlsYes
- Visual IndicatorsPower/Protect
- C.L.E.A.N. In
- C.L.E.A.N. Out
- Power Wire Gauge4 AWG
- Power Input ConnectorCompression Terminal Block
- Speaker Wire Gauge8 AWG
- Speaker Output ConnectorCompression Terminal Block
- CoolingConvection
- Heatsink
- Operating Voltage9 - 16 VDC
- Recommended Fuse
- (not included)120 A
- Average Current Draw (13.8V Music)
- Max. Current Draw (13.8V Sinewave)71 A
- Suggested Alternator
Included In The Box
- Dimensions (H x W x D)1.9" x 6.8" x 10.1"
- (4.9 cm x 17.3 cm x 25.5 cm)
- Shipping Weight
