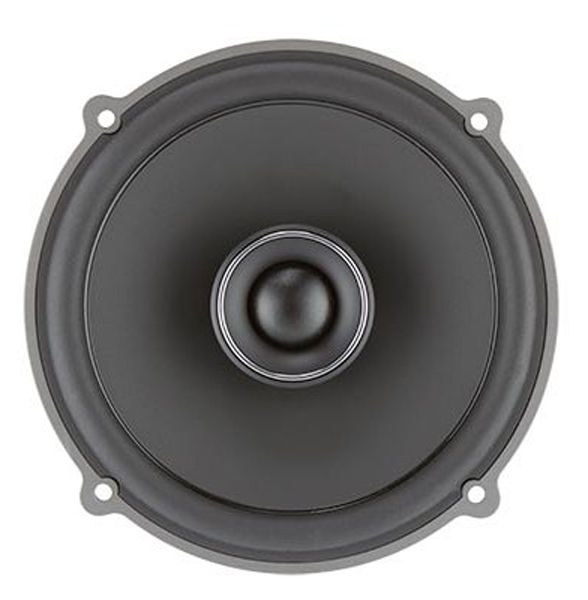

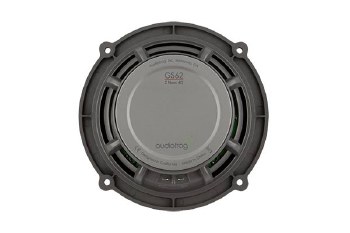

GS62

• Injection molded ABS plastic and fiberglass vented basket
• Parabolic polypropylene cone
• Nitrile butadiene rubber rurround
• 1” (25mm) copper voice coil on Kapton® former
• Flat progressive Nomex® spider
• Ferrite magnet
• 1” (25mm) fabric dome neodymium tweeter
• Tweeter includes reflection absorbing and diffusing foam pad
• Low-profile tweeter waveguide helps to provide smooth transition to the midrange
• Fast-on terminals secured with integrated PC board
• Integrated passive crossover (12dB/octave high pass and 6dB/octave low pass)

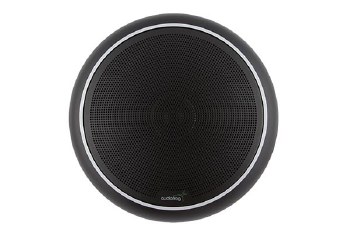

• Grille and multiadapter included

• Nominal Impedance: 4Ω
• RMS Power Handling: 70 W (with recommended crossover)
• Peak Power Handling: 200 W (with recommended crossover)
• Frequency Response: 50 Hz – 20 kHz
• Sensitivity (2.83 V/1 M): 89 dB
• Recommended Amplifier RMS Power Range: 15 W – 75 W

Dimensions:

Frequency Response Graph:

Thiele & Small Parameters:

• Revc: 2.28 Ω
• Levc@1kHz: 0.14 mH
• Sd: 138.93 cm²
• Mmd: 11.8 g
• Mms: 12.75 g
• Cms: 306.5 µM/N
• Vas: 8.45 liters
• Fs: 80.5 Hz
• BL: 4.4 TM
• Qms: 6.33
• Qes: 0.76
• Qts: 0.67
• Xmax (1-way linear): 4 mm (3/16”)
• Basket Displacement: 0.33 liters (0.011ft³)
