FDMC-1310

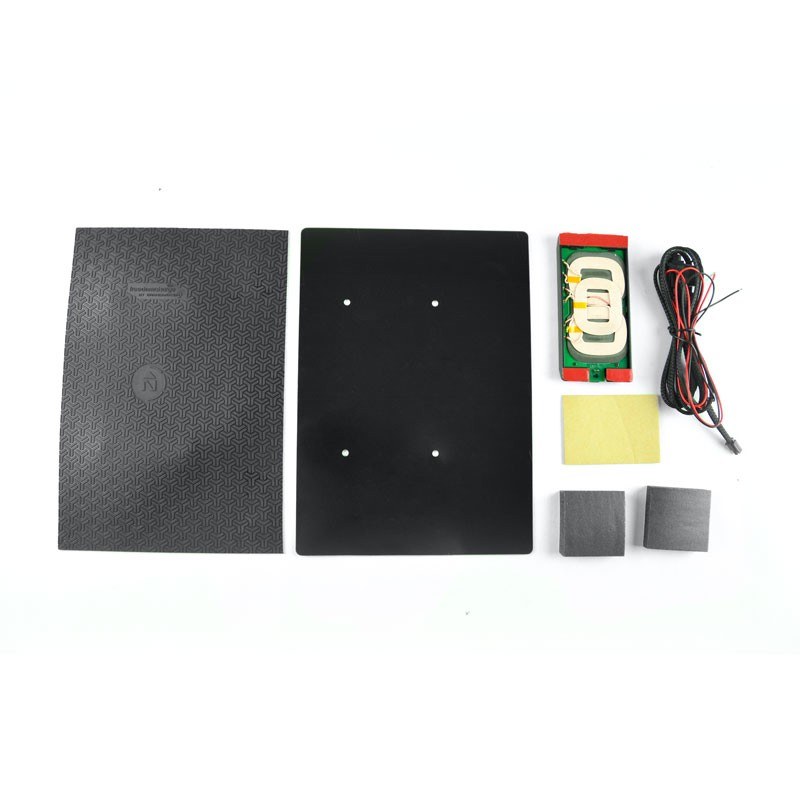

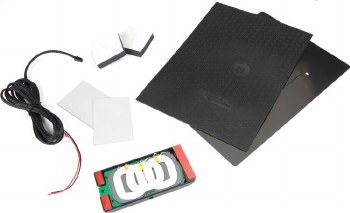

Overview: The Brandmotion FDMC-1310 FreedomCharge Max lets you add wireless charging functionality to your vehicle. The kit includes a Qi wireless charging module, a trim-to-fit non-slip mat and substrate panel, power/ground harness, and mounting hardware. Designed to be universal, the kit can be cut to fit most any vehicle armrest or phone storage tray, allowing you to seamlessly integrate wireless charging of your compatible smartphone.

Qi Wireless Charging Module: The included Qi wireless charging module works by using inductive charging technology to allow your Qi compatible smartphone to charge without any cables or connecting a charger.

• Faster Charging: The FreedomCharge Max's triple-coil design adds three times the charging area for phone placement and is Fast-charge compatible. With 15 watts of charging power, the FreedomCharge Max can charge iPhones up to 33% faster and Samsung phones up to 50% faster that standard 5 watt chargers. It will charge your phone's battery to 100% and then taper off to avoid overcharging.

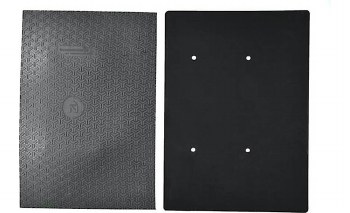

• Phone Case Compatible: The FreedomCharge Max charging kit includes an improved, thinner designed rubber mat and substrate that allows for charging through thick phone cases such as an Otterbox®.

Note: Do not place magnetic cards or magnetic recorded media too close to the wireless charging module as it may damage your card or erase your recorded media. Do not place metal objects near the Qi wireless charging module while its being used to charge your smartphone. Do not place smart keys within 6" of the charging module, as it may prevent vehicle from starting.

Smartphone Compatibility: The Brandmotion FreedomCharge Max charging kit is designed to charge any smartphone with integrated Qi functionality, both Android or iPhone.

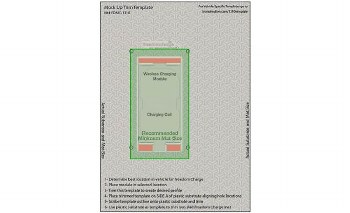

Installation: The FDMC-1310 FreedomCharge Max is designed to be mounted to most any armrest or phone tray. The included cutout template can be sized to fit your existing location, or check here for one of Brandmotion's Vehicle Specific Templates, available for select Ford, Chevrolet, GMC, Jeep, and Ram vehicles. Two types of mounting methods are available for the charging module:

• Drop-In Mounting: In this type of mount, the charging module sits inside the vehicle phone tray, using the attached adhesive strips, with the included plastic substrate panel and rubber mat getting mounted on top of the charging module. A foam spacer block with adhesive backing is provided to help hold the charging module in place.
• Under Mounting: With this method of mounting, the charging module is attached to the bottom side of he vehicle phone tray, using its adhesive backing, and the non-slip rubber mat is cut to fit the inside of the tray over top of the charging module. This method retains most of the vehicle phone tray's original depth.

Note: Permanent modifications to your armrest or phone tray are necessary for proper installation of the FDMC-1310 Qi charger.

Power Requirements: The Qi wireless charging module must be connected to your vehicle's 12-volt electrical system and requires +12VDC switched power and ground. A pre-loomed 8' power wire, with in-line 3A fuse, and ground cable are included. The optional FDMC-1900 Wiring T-harness (sold separately) can be used to connect directly into the vehicle's 12V switched power socket or lighter socket without any wire splicing.

Dimensions:

• Rubber Mat & Substrate: Width - 7.875", Length - 10.50", Thickness - Mat: 2mm / Substrate: 1mm
• Charging Module: Width - 2.375", Height - 0.375", Length - 6.938"

• universal Qi charging kit for cars and trucks
• works with Qi-equipped phones, devices, and Brandmotion Qi-compatible coils and smartphone sleeves
• includes wireless charger, non-skid mat, drill and mat template, and wiring
• 15-watt power output for fast charging; trickle charges phone once battery level is full
• triple-coil adds 3x charging area for easier phone placement
• cut-to-fit design allows placement in vehicle's storage tray
• charges through OtterBox and other thick phone cases
