51CWQ122

Dual Voice Coils: For increased system flexibility, the woofer has two 2Ω voice coils. When the voice coils are wired in parallel, the woofer presents a 1Ω load; when wired in series, the woofer presents a 4Ω load.

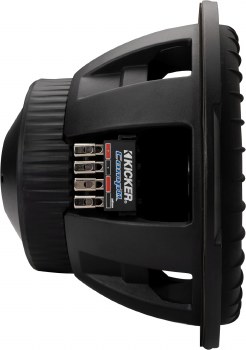

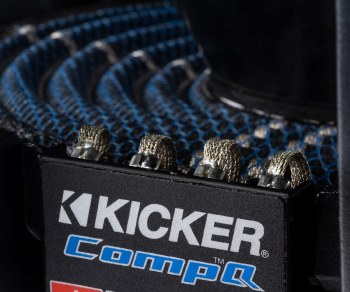

Terminals: The spring post terminals will accept pin connectors, single banana plugs (but not dual), and bare wire up to 8 gauge.

Sealed Enclosure: A sealed enclosure design gives the smoothest response with increased energy at the lowest frequencies (between 20 and 30 Hz).

• Minimum Volume: 0.88 ft³
• Maximum Volume: 2.0 ft³

Vented Enclosure: A vented enclosure design increases efficiency relative to sealed enclosures.

• Minimum Volume: 1.75 ft³ with a 13¼" x 2½" x 22½" slot port
• Maximum Volume: 3.25 ft³ with a 13¼" x 3" x 14½" slot port

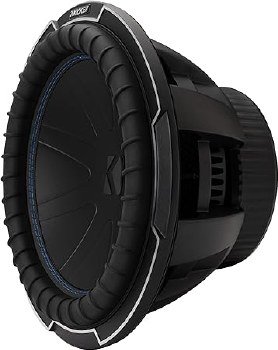

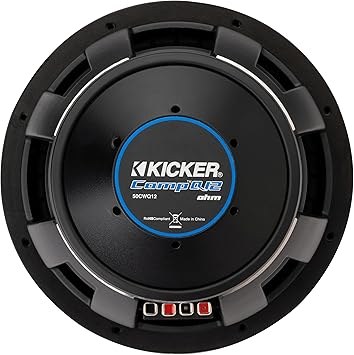

• 12" subwoofer with dual 2-ohm voice coils

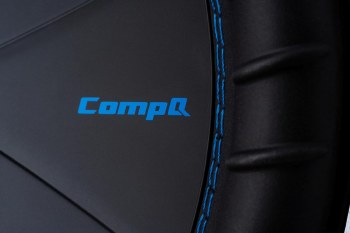

• SoloKon polypropylene cone with Santoprene rubber surround
• cast aluminum basket
• power handling: 1000 watts RMS (2000 watts peak)
• sensitivity: 85.4 dB
• frequency response: 20-100 Hz
• mounting depth: 7.125"
• cutout diameter: 11.003"
• sealed box volume: 0.88-2.0 cubic feet
• ported box volume: 1.75-3.25 cu. ft.
• grille not included
