KICKER
49ST7MR8

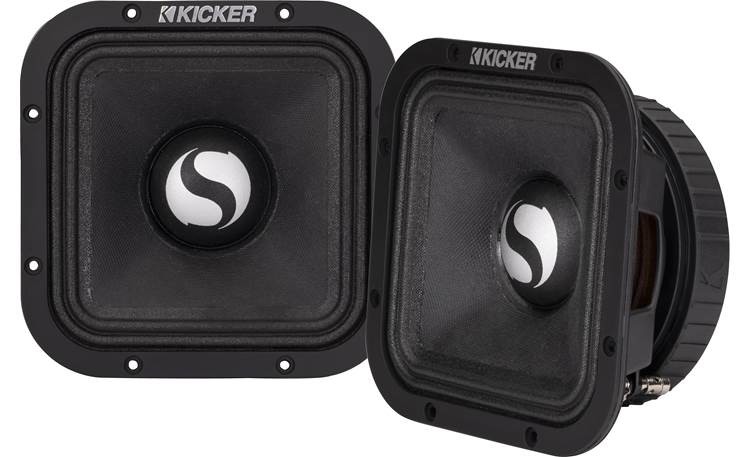

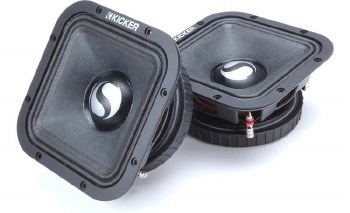

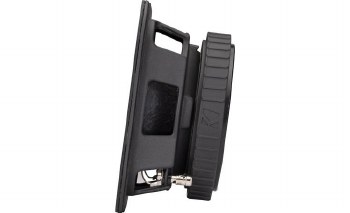

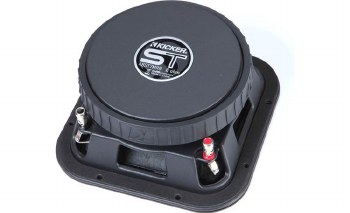

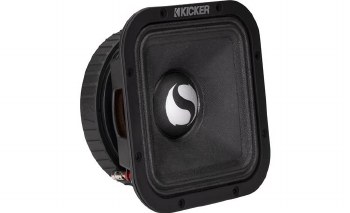

ST7MR8 7" Midrange 8-Ohm ST-Series Street/PA Pro Audio style speakers Square cone design provides nearly 20% more output Perfect for Competition-Level SPL Systems Spring-loaded terminals accept 12 AWG wire 50W-250W RMS 500W Peak Mounting Depth 3-1/16" Mounting Cutout 5-7/8" x 5-7/8" RoHS Compliant
Mounting: The ST7MR midrange drivers are designed to mount in free-air applications. They are just over 3" deep (3.07") and require a square opening approximately 6" x 6".
Terminals: The spring post terminals accept wire up to 12-gauge. Kicker recommends using at least 16-gauge wire (minimum).
Crossover: These speakers do not include a crossover, so you'll need to add one to integrate them into your system.
Dimensions:
- Top mount depth: 3.07"
- Mounting height: 0.29"
- Flange height: 0.29"
- Bottom mount depth: 3.36"
- Tweeter Protrusion: 0.0"
- Cutout: 5.9" x 5.9" (square)
- Frame: 7.016" x 7.016"
- 7" midrange speakers designed for SPL competition (pair)
- pressed pulp cone with cloth surround
- square woofer design
- handles up to 250 watts RMS (500 watts peak)
- frequency response: 80-7,500 Hz
- impedance: 8 ohms
- sensitivity: 92 dB
- grilles not included
- top-mount depth: 3-1/16"
- cutout dimensions: 5-7/8" x 5-7/8"
- frame width: 7"
