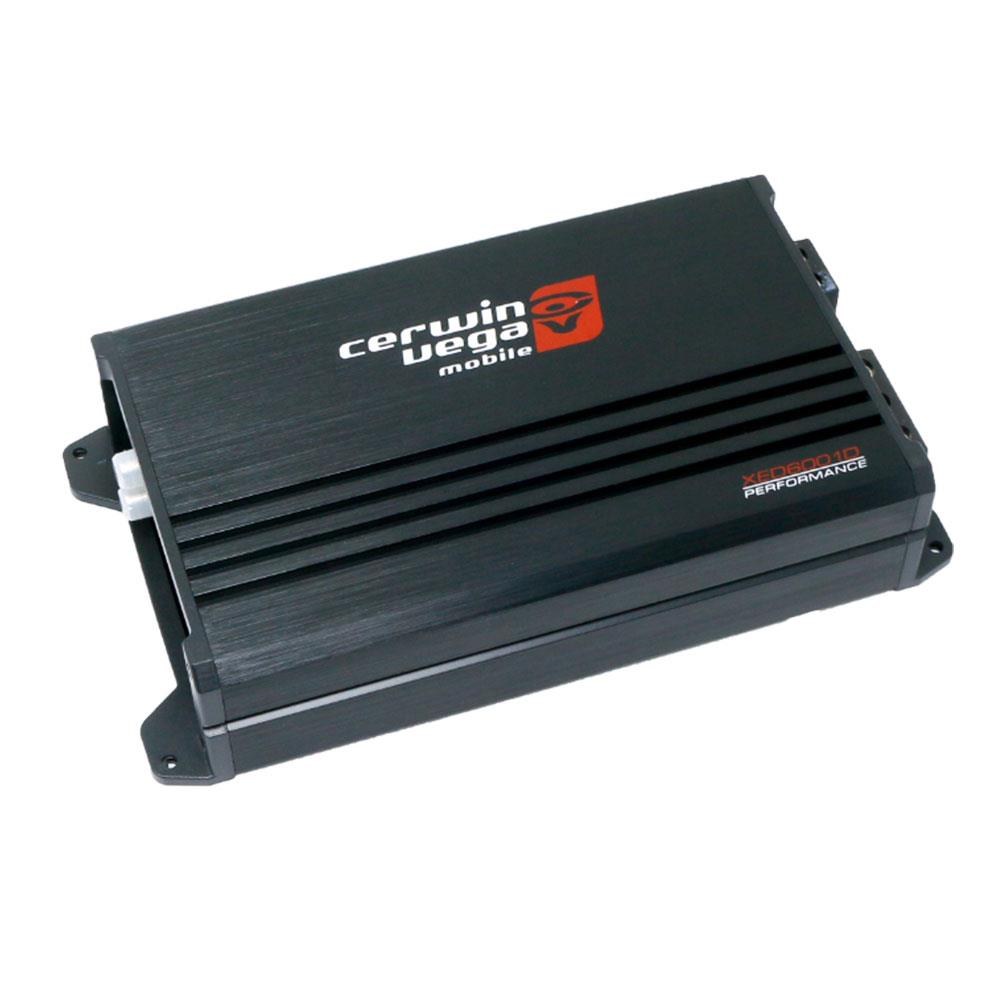

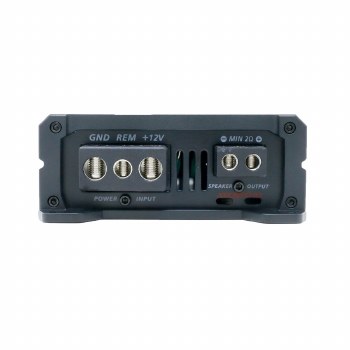

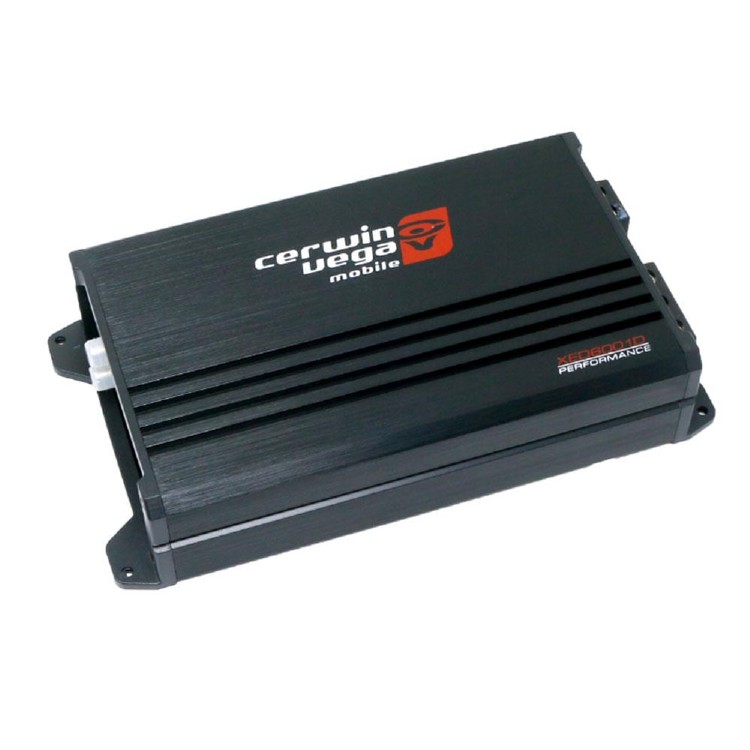

XED6001D

• 800W MAX Power
• 1 Channel Amplifier
• 600W x 1 @ 2Ω RMS
• 320W X 1 @ 4Ω RMS
• Crossover: 35Hz~250Hz(LP)
• Frequency Response: 10Hz~250Hz
• Dimensions: 7.1” x 4.7” x 1.8” ( 180.34mm x 119.38mm x 45.72mm )

• Amplifier    1 Channel
• Description    XED6001D - 1 Channel XED Series Amplifier / 800W MAX
• RMS Power Rating    320w @ 4Ω/600w @ 2Ω
• MAX Power Rating    800w MAX
• RMS Power(2Ω)    600w
• RMS Power (4Ω)    320w
• Types    Monoblock, Class D
• Topology    Class D
• Frequency Response    10Hz~250Hz
• Power Supply    Full PWM
• Power Supply (Threshold)    10.0VDC – 16.0VDC
• Idle Current    (0.7A)
• Distortion - THD (1KHz@4Ω)    <0.1%
• Distortion - S/N Ratio (A weight @ 1W)    -85dBA
• Distortion - S/N Ratio (A weight @ FP)    -101.1dBA
• Input Sensitivity Low    250mV – 6.0V
• Input Sensitivity High    1.1V ~>20.0V
• Input Impedance - Low Input Level    20 KΩ
• Input Impedance - High Input Level    100 Ω
• Output Impedance    2Ω
• Damping Factor (50Hz@4Ω)    >70
• Bandwidth (-3dB)    10Hz-250Hz
• Crossover (-12 dB/ Oct) Variable High-Pass    N/A
• Crossover (-12 dB/ Oct) Variable Low-Pass    35Hz-250Hz
• Crossover (-12 dB/ Oct) Variable Sub-Sonic    10Hz-50Hz
• FUSE Ratings - ATC    2 x 30A INTERNAL
• Remote    Bass Level COntrol
• Dimension - Length x Width x Height - Inches(mm)    7.1” x 4.7” x 1.8” (180 x 120 x 46.5mm)
