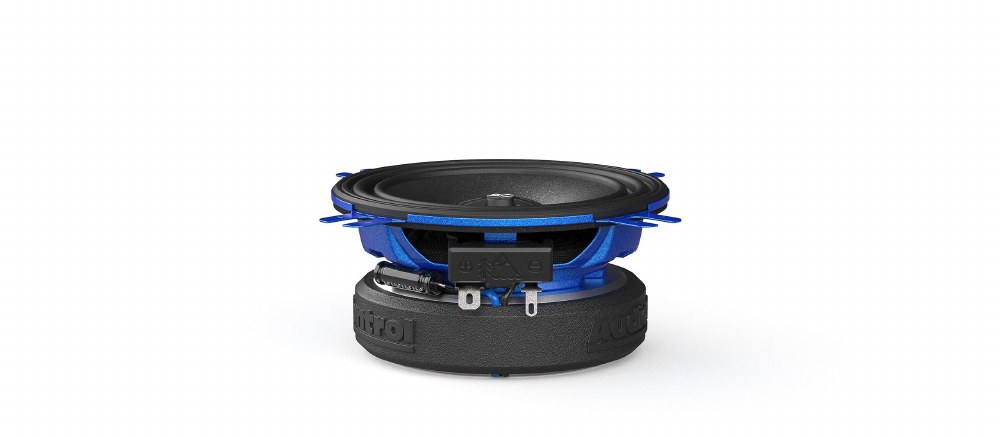

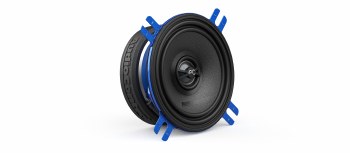

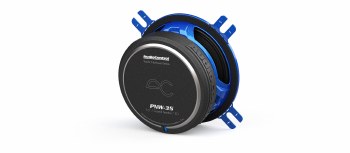

PNW-35

• Edge-enhanced steel frame for added structural strength
• Black anodized voice coil former for superior heat dissipation
• Linear double-roll surround for precision cone movement
• Complex FEA-designed high-efficiency motor
• Rigid poly mica-coated cone for optimized sound reproduction
• Rear dampened hybrid silk dome tweeter for extended frequency response
• Concentric point source design for a seamless transition from midrange to tweeter
• Sonic diffuser and radiant collar for better off-axis frequency response
• High-quality mounting hardware included

Crossover Type                                     Butterworth

DC Resistance (Re).                              1.75 ohms

Filter Type                                             HP

System Frequency (Fs) Response     90-20k Hz

XO Frequency                                      5900 Hz

Slope (Octave)                                      -6 dB

Tweeter Voice Coil Diameter           13 mm

Midrange Voice Coil Diameter        25 mm

Dimensions

• Overall Diameter (w/ metal bracket): 4,44 in/ 113 mm
• Cut Out Diameter: 3.0 in/ 76.5 mm
• Mounting Depth: 1.55 in/ 39.5 mm
• Motor Diameter (w/ Cover): 2.96 in / 75.4 mm

No Speaker Grille Applicable for PNW-35

in the box:

PNW-35, Manual, Warranty
