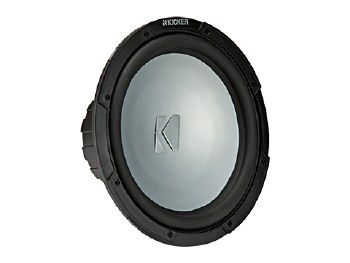

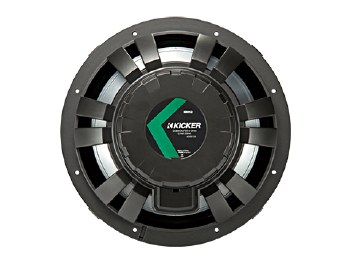

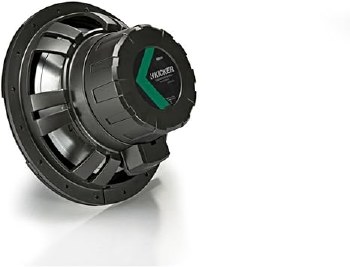

45KM122

• KICKER 45KM104 10" 350W Peak/175W RMS Marine Subwoofer SVC 4-Ohm, RMS Power Handling: 175 Watts. Peak Power Handling: 350 Watts. Two-Ohm Voice Coil. Injection-Molded Polypropylene Cone. Co-molded Santoprene Surround. UniPlate Back Plate And Pole Piece.
• Thick Tinsel Leads. Large Ceramic Magnet. Rear Gasket Included. Polymer Basket Resists Corrosion. Protective Terminal Cap.Stainless Mounting Hardware Included
• Meets or Exceeds ASTM Standards for UV and Salt/Fog Exposure. Frequency Response: 30 Hz - 500 Hz. Impedance: 4 Ohms.
• Mounting Depth: 5" inches. Hole Diameter: 9 3/16. Sealed Enclosure Volume Min-Max: 1-2.4 cubic feet

Thiele/Small Parameters
 45KM122 T/S Parameters PDF
Product Dimension Sheet
45KM12 Dimensions
Woofer(in,mm)
12, 30
Impedance (OHMS)
2 SVC
Peak Power (watts, per ANSI/CTA-2031-A)
350
Recommended Amplifier Power (watts RMS)
175
Sealed Enclosure Volume Min-Max(ft³, L)
1.25-3.5, 25.4-99.1
Vented Enclosure Volume Min-Max(ft³, L)
1.75-2.25, 49.6-63.7
Frequency Response(Hz)
30-500
Mounting Depth(in, cm)
5.5, 13.9
Hole Diameter(in, cm)
11, 27.9
Outer Diameter(in, cm)
13, 32.95
What's in the Box:
1 - 12" Woofer
1 - Back gasket
8 - Mounting screws
8 - Mounting screw clips
1 - Manual
