KIT-C200

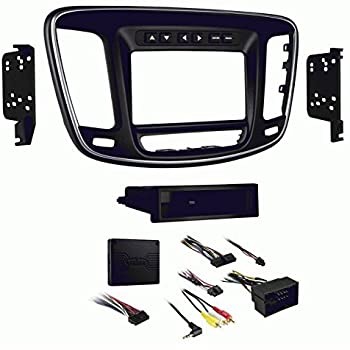

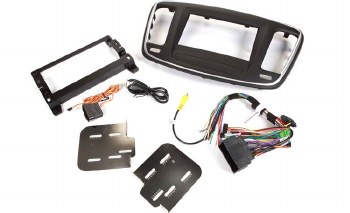

OEM Grade Fit & Finish Kit: The KIT-C200 OEM integration kit features a factory grade fit & finish to match the contour and color of your vehicle's dash. It will fit a double-DIN (4") size aftermarket head unit.

Vehicle Harness: The iDatalink Maestro KIT-C200 includes a vehicle harness which inserts into the iDatalink Maestro RR or RR2 interface module (sold separately), plugs into your vehicle's factory radio harness, and hardwires to the harness of your new aftermarket double-DIN receiver. The installation harness contains one large Molex connector which plugs into your vehicle's factory radio harness. On the other end of the harness are four multi-pin connectors which plug into the Maestro RR interface module (sold separately). The harness also includes a composite video connector which plugs into your aftermarket head unit's rear-panel camera input in order to retain your vehicle's factory backup camera. In addition, a USB adapter harness retains your vehicle's factory USB port through your aftermarket receiver's rear-panel USB port.

Retained Features: The follow factory features (if applicable) are retained when replacing your aftermarket head unit with a compatible iDatalink Serial Port head unit from Kenwood, JVC, Alpine, Sony, or Pioneer using the Maestro RR or RR2 Car Radio Replacement Interface module and KIT-C200 installation kit.

• Steering Wheel Controls (with two function capability)
• Factory Amplifier (with fader control, DSP settings, and gain adjustment)
• Backup Camera
• Secondary Vehicle Display (with Hands-Free, Audio, and Navigation Info)
• Factory knobs and buttons will operate aftemarket stereo

Extra Features: The follow extra features are retained when replacing your aftermarket head unit with a compatible iDatalink Serial Port head unit from Kenwood, JVC, Pioneer, Sony, or Alpine using the Maestro RR or RR2 Car Radio Replacement Interface module and KIT-C200 installation kit.

• Selectable Performance Gauges
• Park Assist (with distant display on-screen & warning chimes)
• Tire Pressure Display
• Battery Voltage Display
• Read/Reset Check Engine Codes
• Door Open Status and Warning

Navigation Outputs: To make installing an aftermarket navigation receiver easier; the KIT-C200 provides Parking Brake, Foot Brake, Reverse Gear, & VSS (Vehicle Speed Sense) output wires.

• allows installation of new iDatalink-ready receiver in select Chrysler 200 vehicles
• requires the Maestro ADS-MRR or MRR2 module (not included)
• retains the use of your steering wheel audio controls, factory amp, backup cam, and USB port
• retains your secondary display (with phone call, audio, and navigation information)
• includes metal brackets for radio installation and blank button panel for use in vehicles without the factory button bar
• displays engine performance and other data on new car stereo's touchscreen

USER MANUAL

Vehicle Compatibility: The iDatalink Maestro KIT-C200 consists of an OEM integration dash kit and vehicle harness designed specifically for 2015-2017 Chrysler 200(s) with or without a factory amplified audio system. The KIT-C200 lets you replace the factory radio of your 2015-2017 Chrysler 200 with an iDatalink Serial Port compatible head unit using the Maestro RR or RR2 Car Radio Replacement Interface module (sold separately).
