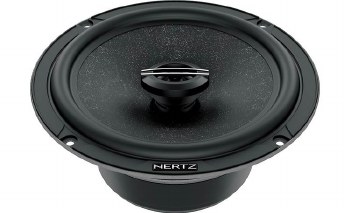

HERTZ
CX 165
Set 6.5 in. (165mm) 2-Way Coax
1. Soft Tetolon® fiber 24 mm (0.9 in.) dome tweeter and 13 mm (0.5 in.) mobile coil cooled with ferrofluid, for extended and natural high frequencies.
2. RHFC ™ (Rotary High Frequency Contour) tweeter angled and directable to the listener for a perfect frequency response in any installation scenario.
3. Tweeter faceplate geometry optimized with FEM simulations (Finite Element Modeling), to provide an extremely linear frequency response in off-axis installations.
4. 25 mm (1 in.) woofer coil featuring an aluminum former to guarantee high excursion and power handling.
5. 165 mm (6.5 in.) semi-pressed paper cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping.
6. High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
7. Compact and transparent three-spoke basket acoustically combined with a rubber magnet cover for total damping of spurious vibrations.
8. Elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh, available as optional.
| Component | Coaxials |
| Size mm (in.) | 165 (6.5) |
| Power Handling - Continuous W | 70 |
| Power Handling - Peak W | 210 |
| Impedance Ohm | 4 |
| Woofer Voice Coil Ø mm (in.) | 25 (1) |
| Tweeter Voice Coil Ø mm (in.) | 13 (0.5) |
| Frequency Response Hz | 55 ÷ 22k |
| Woofer Magnet size D x d x h mm (in.) | 85 x 32 x 15 (3.35 x 1.26 x 0.59) |
| Tweeter Magnet size D x h mm (in.) | 13 x 2 (0.51 x 0.08) |
| Weight of one speaker kg (lb.) | 0,95 (2.09) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Semi-pressed paper+ Mica |
| Dome | Tetolon |
| Xmech mm (in.) | 4,9 (0.19) |
| D mm | 131,5 |
| Re Ohm | 3,2 |
| Fs Hz | 65 |
| Le mH | 0,21 |
| Vas I | 12,2 |
| Mms g | 13,3 |
| Cms mm/N | 0,46 |
| BL T*m | 4,8 |
| Qts | 0,60 |
| Qes | 0,73 |
| Qms | 3,4 |
| Spl dB | 93 |
