HERTZ
CPX 165
Set 6.5 in. 2-Way Coax

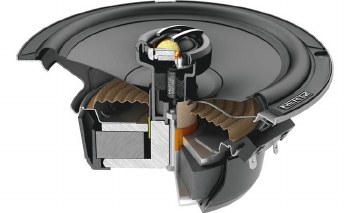

1. Soft Tetolon fiber dome tweeter featuring a 20 mm mobile voice coil cooled with ferrofluid, for natural and extended high frequencies.
2. Radial Venting System technology including 8 venting holes for an excellent cooling of the voice coil and a natural mid range, featuring a low tweeter Fs, thanks to the air exchange with the support that acts as a large rear chamber
3. 25mm diameter pure copper coil to guarantee high excursions.
4. Pressed paper cone with FEM-optimized geometry combining rigidity and lightness for color-free sound.
5. High density ferrite magnet in combination with low carbon polar plates for a reduced distortion at high power levels.
6. 3-spoke, compact and transparent basket acoustically combined with an anti-vibration rubber magnet cover for an overall damping of spurious vibrations.
7. Stylish grille with high resistance ABS plastic frame with metal finish combined with a protective metallic mesh.
Technical Specs
| Component | Coaxials |
| Size mm (in.) | 165 (6.5) |
| Power Handling - Continuous W | 95 |
| Power Handling - Peak W | 285 |
| Impedance Ohm | 4 |
| Tweeter diaphragm mm (in.) | 26 (1) |
| Woofer Voice Coil Ø mm (in.) | 25 (1) |
| Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |
| Frequency Response Hz | 45 ÷ 22k |
| Woofer Magnet size D x d x h mm (in.) | 85 x 32 x 17 (3.35 x 1.26 x 0.67) |
| Tweeter Magnet size D x h mm (in.) | 19 x 3 (0.75 x 0.12) |
| Weight of one speaker kg (lb.) | 1.13 (2.49) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Pressed-paper cone |
| Dome | Tetolon |
| Xmech mm (in.) | ±6,9 (0.27) |
Electro-acoustic Specs
| D mm | 131,5 |
| Re Ohm | 3,3 |
| Fs Hz | 60 |
| Le mH | 0,29 |
| Vas I | 11,8 |
| Mms g | 14,6 |
| Cms mm/N | 0,47 |
| BL T*m | 5,3 |
| Qts | 0,55 |
| Qes | 0,64 |
| Qms | 4,1 |
| Spl dB | 92 |
