MAESTRO
ACC-HU-PIO1

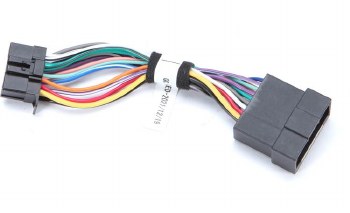

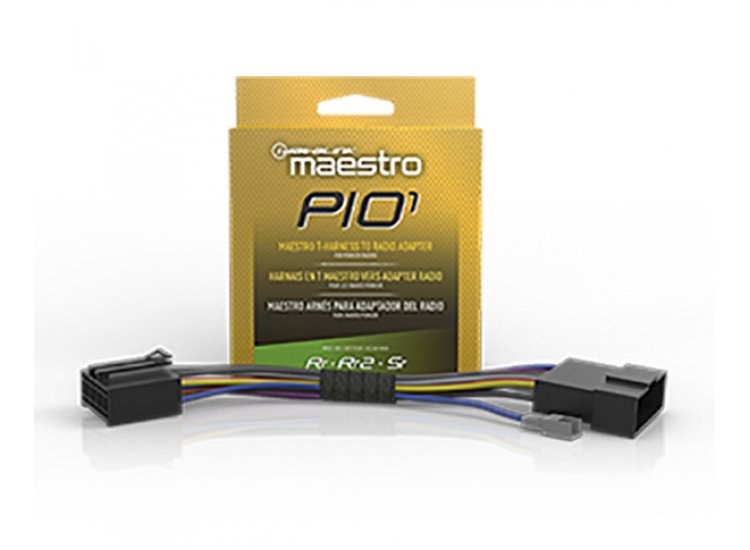

Head Unit Adapter Harness for Pioneer Radios
- connects to select Pioneer head units
- also requires an iDatalink Maestro RR module and compatible iDatalink vehicle-specific T-harness
- Package Dimensions : 4.69 x 3.98 x 1.26 inches; 1.45 ounces
| Black 16-Pin Connector | ||
|---|---|---|
| Pin # | Wire Color | Function |
| 1 | Yellow | +12-Volt Constant |
| 2 | Red | +12 Volt Accessory |
| 3 | Orange/White | Illumination |
| 4 | Light Green | Parking Brake |
| 5 | Green/Black | Left Rear Speaker (-) |
| 6 | Green | Left Rear Speaker (+) |
| 7 | White/Black | Left Front Speaker (-) |
| 8 | White | Left Front Speaker (+) |
| 9 | Black | Ground |
| 10 | Violet/White | Reverse |
| 11 | Blue/White | Amplifier Turn-On |
| 12 | Pink | VSS (Vehicle Speed Sense) |
| 13 | Violet/Black | Right Rear Speaker (-) |
| 14 | Violet | Right Rear Speaker (+) |
| 15 | Gray/Black | Right Front Speaker (-) |
| 16 | Gray | Right Front Speaker (+) |
