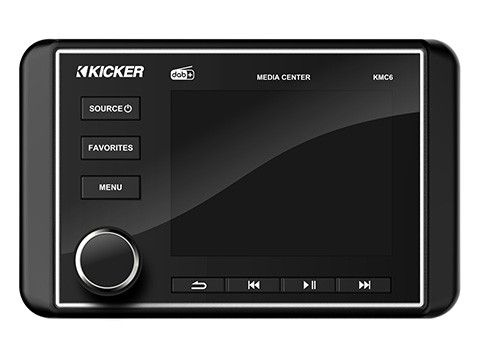

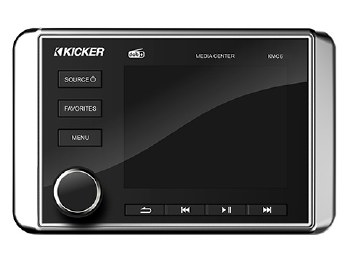

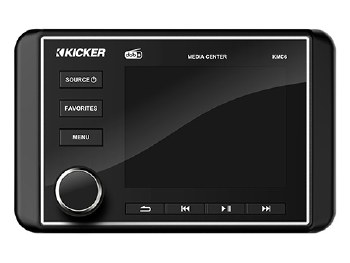

48KMC6

• Charging USB w/Thumb-Drive Playback
• Bluetooth Connectivity
• Full-Color LCD Display
• Ability to control Zone 2
• SiriusXM ready
• 3” Hole Cutout
• Dedicated Zone 2 speaker outputs
• NMEA Port
• Video RCA Input with Remote trigger wire
• AM/FM and Weather-band Tuner
• Up to 16 Favorites for each source: AM, FM and SiriusXM
• Front, Rear, Subwoofer and Zone-2 RCA Outputs
• AUX RCA Input
• Day/Night Mode
• Low Battery alert
• Loudness control
• Customizable EQ with Five Presets
• Voltage Display

Power Output @ 14.4V, 4Ω stereo, <10% THD+N: 25x6
Power Output @ 14.4V, 2Ω stereo, <10% THD+N: 40 x 6
Frequency Response [Hz]: 20 - 20k
Signal-to-Noise Ratio [dB]: 108


RCA Outputs
Pre-amp Outputs:
Front
Rear
Subwoofer
Zone2
Line-Out Level [V]: 4
Outer Trim Ring Dimensions [in, cm]: 3.5 x 5.5, 8.89 x 13.97
Protrusion From Mounting Surface [in, cm]: 1-5/16, 3.33
Mounting Depth [in, cm]: 5, 12.7
Mounting Hole Diameter [in, cm]: 3, 7.62
Mounting Panel Thickness Range [in, cm]: Any
IP Rating: IP66
AUX Input Sensitivity: Adjustable from 500mV-1.5V


USB:Playback, Charging, Compatible File System
MP2, MP3, WMA, WAV16, FLAC, AAC, ALAC, M4A
DC 5V, 1 Amp
FAT32
BT Range (feet): 30
