51MWLE104

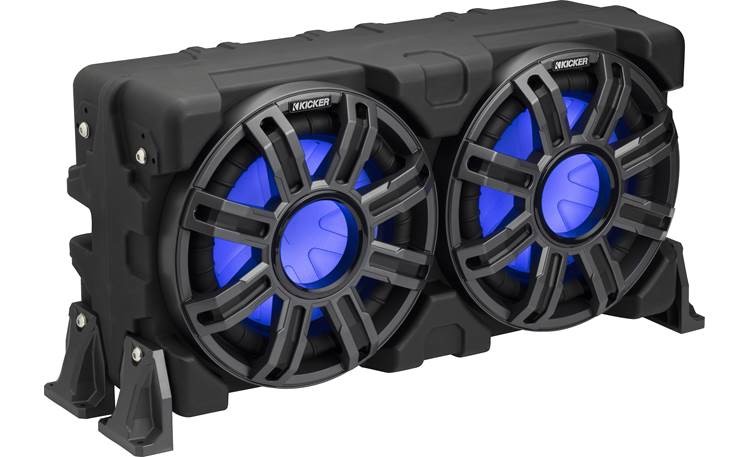

Passive Radiator Enclosure: The Kicker MWLE104 (51MWLE104) marine enclosure is loaded with one 10" subwoofer and one 10" reFLEX passive radiator. Both cones feature durable weather-resistant polypropylene cones with a co-molded TPE surround and ribbed silicon gasketing.

Real Marine® Design: Part of Kicker's Real Marine design, the MWLE104 subwoofer carries an IP66 waterproof rating and has gone through rigorous testing to ensure it meets or exceeds marine industry standards, including ASTM B117 & ASTM G154 testing and ISO 12216:2002 D 1.1-2.

Power: The MWLE104 can handle 200-400 watts RMS (800 W peak), and presents a 4-ohm load at the single set of input wires.

Upright & Down-Firing: The Kicker MWLE104 features two mounting options: Up- or front-firing for projecting the loudest bass possible, or in a down-firing configuration for the deepest deck-vibrating bass response.

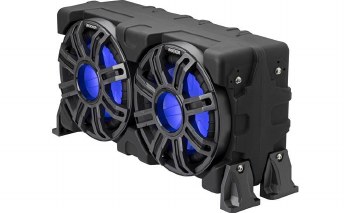

RGB Lighting: The MWLE104 speaker grilles have a built-in 7 color LED lighting system on the back of them that will light up the speaker cone when activated. The enclosure includes an 11" input harness with speaker wires and RGB LED wiring. The Black wire gets connected to a +12 volt source while the Red, Green, and Blue wires are used to activate that color when a ground is applied, giving you a total of 7 color choices. The optional Kicker KMLC Lighting Remote Control (sold separately) can provide up to 20 colors and 19 lighting modes.

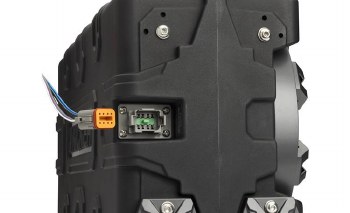

Wiring: The Kicker MWLE104 features a watertight connection port for both the speaker and RGB LED wiring. An included 11" harness features a matching watertight connector on one end, for plugging into the enclosure, and bare-ended wire on the other end for attaching to your amplifier.

Dimensions (with feet):

• Upright/Front-Firing: 25.56" (w) x 12.38" (h), 8.63" (d)
• Down-Firing: 25.56" (w) x 9.38" (h), 11.75" (d)

• waterproof sealed enclosure with 10" subwoofer and 10" passive radiator

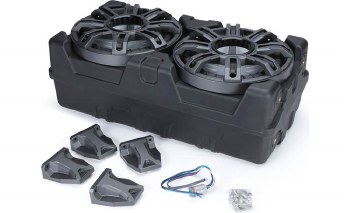

• locking mounting feet and two charcoal grilles included
• Kicker Real Marine designation for weather-proof construction under rigorous testing
• polypropylene cone with co-molded TPE surround on both speakers
• built-in RGB LED lighting
• enclosure can be mounted for front-, up-, or down-firing applications
• impedance: 4 ohms
• power handling: up to 400 watts RMS (800 peak)
• frequency response: 20-500 Hz
• dimensions: 12.38"H x 25.56"W x 8.63"D (9.38"H x 25.56"W x 11.75"D for down-firing position)
