51CWQ102

Dual Voice Coils: For increased system flexibility, the woofer has two 2Ω voice coils. When the voice coils are wired in parallel, the woofer presents a 1Ω load; when wired in series, the woofer presents a 4Ω load.

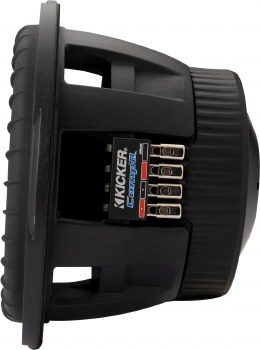

Terminals: The spring post terminals will accept pin connectors, single banana plugs (but not dual), and bare wire up to 8 gauge.

Sealed Enclosure: A sealed enclosure design gives the smoothest response with increased energy at the lowest frequencies (between 20 and 30 Hz).

• Minimum Volume: 0.66 ft³
• Maximum Volume: 1.25 ft³

Vented Enclosure: A vented enclosure design increases efficiency relative to sealed enclosures.

• Minimum Volume: 1.25 ft³ with a 2½" x 11¼" x 19¾" slot port
• Maximum Volume: 2.25 ft³ with a 3" x 11¼" x 18" slot port

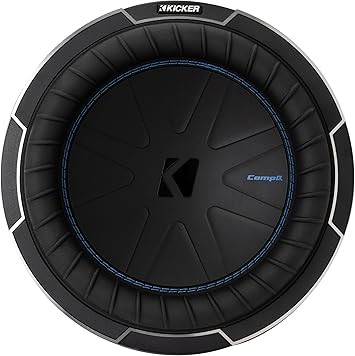

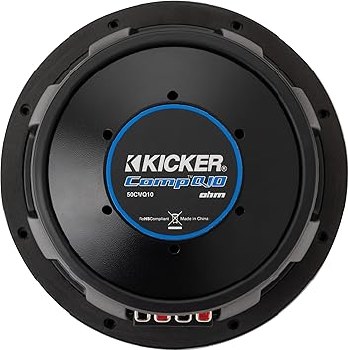

• 10" subwoofer with dual 2-ohm voice coils

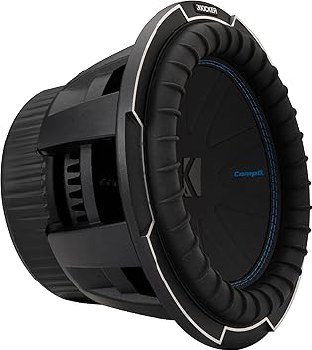

• SoloKon polypropylene cone with Santoprene rubber surround

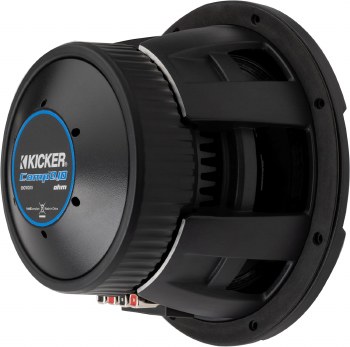

• cast aluminum basket
• power handling: 800 watts RMS (1600 watts peak)
• sensitivity: 84.5 dB
• frequency response: 24-100 Hz
• mounting depth: 6.375"
• sealed box volume: 0.66-1.25 cubic feet
• ported box volume: 1.25-2.25 cu. ft.
• grille not included
