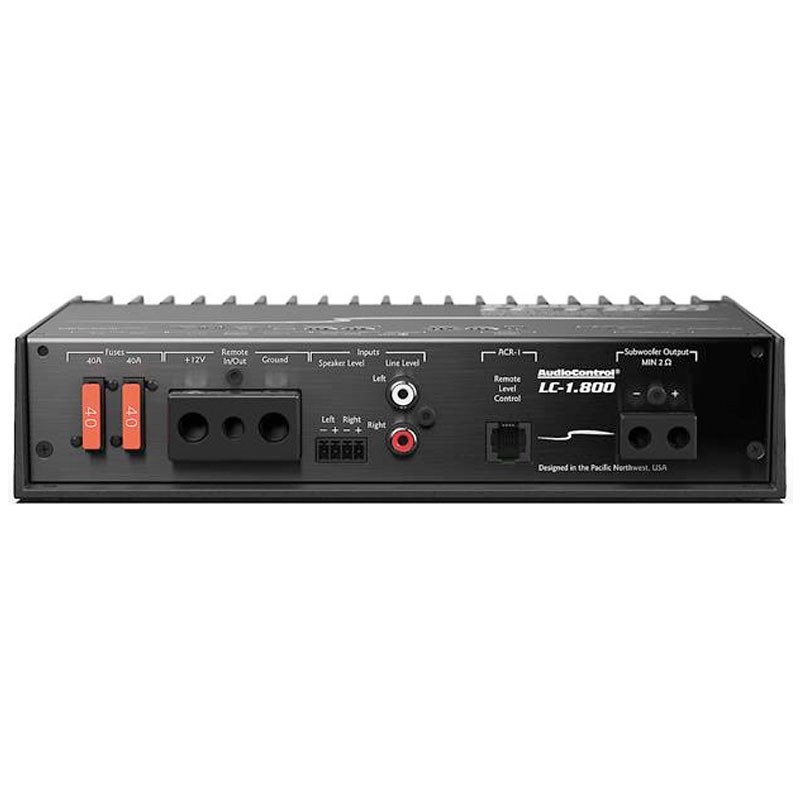

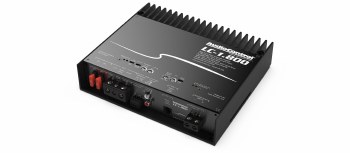

LC-1.800

• Subwoofer amplifier with patented AccuBASS®
• 800 watts @ 2 ohms
• 500 watts @ 4 ohms
• AccuBASS® Processing
• MILC™ Maximum Input Level Control (Patent Pending)
• GTO™ Signal Sense
• 24 dB/octave Linkwitz-Riley Alignment crossover
• Speaker level and preamp inputs
• Optional ACR-1 assignable remote control
• Solid One-Piece Aluminum Chassis

inputs

• Preamp Inputs: 2 balanced
• Input Voltage Range: 500 mV – 6 Vrms
• Speaker Level Inputs: 2
• Speaker Level Input Voltage Range: 3 V – 40 Vrms

outputs

• Rated Continuous (RMS) Power at 14.4V:
  • 4 Ω – 500 W RMS
  • 2 Ω – 800 W RMS

performance

• Signal to Noise: 102 dBa, Ref 500 W @ 4 Ohm
• Damping Factor: 670 at 10 V, 4 Ohm Output, 100 Hz
• THD+N: < 0.01%
• Minimum Power / Ground Wire Gauge: 4 AWG wire
• Fuse Rating: 2 x 40 A
• Crossover: 24 dB/octave Linkwitz-Riley, Adjustable From 30 Hz – 230 Hz
• PFM Subsonic Filter: 24 Hz

weights & dimensions

• Dimensions: 9″W x 7.95″D x 2.1″H
• Weight: 5.0lbs (2.0kg)

in the box: LC-1.800, Speaker connectors, Fuses, Manual, Warranty
