47KPB1

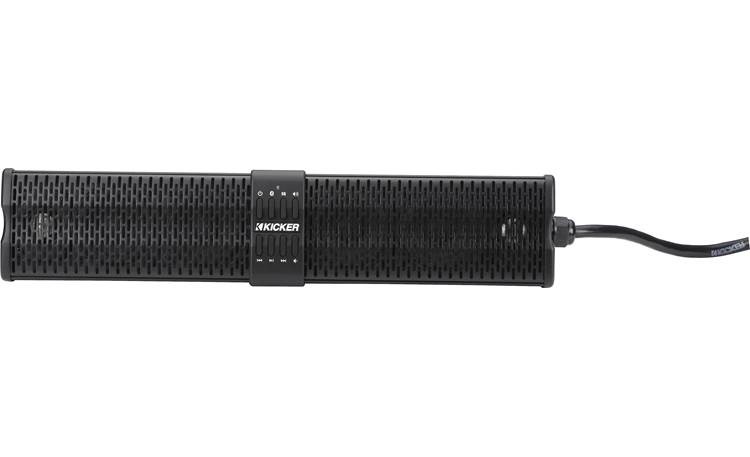

Drivers & Amplifier: The Kicker KPB1 PowerBar features four 3" mid-woofer drivers, with polypropylene cones and santoprene surrounds, and two 1" titanium dome tweeters, all powered by the built-in 150 watt Class-D amplifier.

Construction: The KPB1 is housed in a durable powder-coated aluminum enclosure and grille. The soundbar control panel and wireless remote control both feature oversized, easy-to-use rubberized buttons for added weather protection. The Kicker KPB1 carries an IP66 weatherproof rating, making it impervious to mud and water.

Input & Output: The KPB1 features a 3.5mm Audio Input for connecting a portable playback device or headunit audio output. An additional 3.5mm Audio Output can be used for passing audio out to a secondary soundbar or amplified speaker.

Bluetooth Audio: The Kicker PowerBar features built-in Bluetooth technology, letting you pair and play music from a Bluetooth-enabled playback device. Broadcast Mode allows multiple Kicker KPB1 soundbars to be connected via Bluetooth to a single playback KPB1, allowing each soundbar to play the same audio source.

Note: Bluetooth hands-free phone calls are not supported.

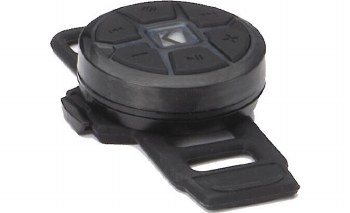

Steering Wheel Remote Control: In addition to the playback controls on the PowerBar, the KPB1 includes a KPBRC wireless steering-wheel mounted remote control that lets you control the PowerBar while keeping your hands on the steering wheel. Charging of the remote control's internal battery is done through a rear-panel micro-B USB (2.0) port from a 5V USB power supply (not included). Oversized rubber buttons on the remote include: Sync, for syncing to the PowerBar after charging and for Bluetooth pairing, Volume +/-, Track Forward/Back, and Play/Pause.

PowerBar Controls: Front-panel controls on the KPB1 PowerBar include: Power, Play/Pause, Volume +/-, Bluetooth for pairing and changing input sources, Track Forward/Back, and EQ. The EQ button lets you cycle through the 4 built-in DSP-controlled EQ presets - Kicker, Loud, Sound Quality, and Voice.

Mounting: The KPB1 includes mounting hardware for attaching it to round roll-cage tubing 1.5", 1.75", and 2.0" in diameter. The optional 47KPBSQ square-tube mounting bracket kit (sold separately) lets you mount the KPB1 to square tubing that's 0.75" (3/4"), 1.0", or 1.25"(1-1/4") in size.

Power: The Kicker PowerBar features built-in 12' power and ground wires for attaching to a +12V battery terminal and chassis ground. Both wires are terminated in ring-terminals with the power wire including an inline 15A ATO fuse.

• 20" sound bar designed for ATV, golf cart, and marine use
  • 4 marine-rated 3" full-range drivers
  • 2 marine-rated 1" titanium tweeters
  • 150-watt Class D amplifier
• built-in Bluetooth
• AUX input
• built-in line output for additional sound bars or powered speakers
• remote control
• waterproof wiring harness
• IP66-rated for water resistance
• mounting hardware included
• round bar clamps included (square bar clamps sold separately)
• frequency response: 50-20,000 Hz
• dimensions: 21"L x 4-9/16"D x 4-7/16"H
