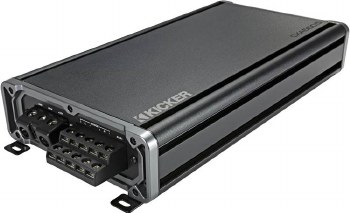

46CXA6605t

Auto Turn-on: The amplifier has two methods of turning on: +12V and DC Offset. The preferred method is to run an 18-gauge wire from the remote turn-on lead of the source unit to the Remote (REM) terminal on the amp. When a +12V signal is detected on the wire, the amplifier will turn on. If your source unit lacks a remote turn-on lead (a factory head unit, for example), you can choose to turn on the amplifier via the DC Offset method. When a DC offset is detected (>2.5 volts) on the speaker-level inputs, the amplifier automatically turns on.

Vehicle Integration: The CXA660.5 amplifier features Kicker's FIT 2+ (Fail-safe Integration Technology 2 PLUS) technology, providing near-universal compatibility with stock and aftermarket radios. Start/Stop vehicle compatibility and the ability to accept factory input signals as high as 40-volts make the CXA660.5 compatible with almost every vehicle and factory or aftermarket radio.

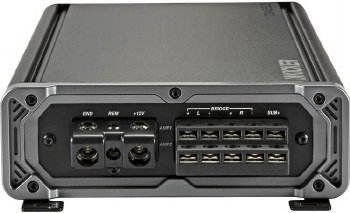

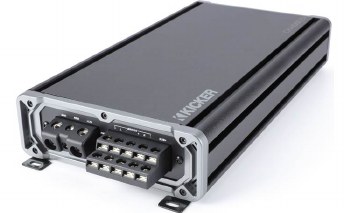

Wire Connections: The CXA660.5 has set screw terminals for power, ground, and turn-on lead (REM). The power and ground terminals will accept up to 4-gauge wire (recommended), and the turn-on lead will accept up to 8-gauge (18-gauge recommended). The set screws are loosened/tightened with the supplied 3mm Allen wrench. The speaker outputs are slotted, screw-down terminals, which will accommodate bare wire or spade connectors. The speaker slots are 0.335" wide.

External Fuse: The amplifier does not include a built-in fuse, therefore an external fuse should be placed on the power wire, within 18" of the battery. It is recommended that a 4-gauge amplifier wiring kit and an 80-amp external fuse be used when installing the amplifier.

Input Signal: The CXA660.5 accepts either high (speaker-level) or low (line-level) input signals on the three pair of RCA inputs (Amp 1, Amp 2, Sub), selectable using the input level switch on the end of the amp. When using a speaker-level input signal, add the optional Kicker KiSL speaker-level to RCA adapter. The input sensitivity is 250mV-10V (low) or 1V-40V (high).

Optional Wired Remote: The optional CXARC wired remote can be added to remotely control the subwoofer channel output level of the amplifier. The CXARC's control knob can be mounted near the driver's seat, and the control's cable extended to the amplifier location.

Certified Power: Each amplifier is tested when it comes off of the assembly line. Tests are run for Total Harmonic Distortion, Signal-to-Noise Ratio, Protection Circuit, and Total Power Output. A Certified Power certificate with model and serial number is included with each amp with the measured power output figure, and a pass/fail grade for the other tests.

• Power Output:
  • Full Range Channels: 65 watts RMS x 4 into 4Ω
  • Subwoofer Channel: 150 watts RMS x 1 into 4Ω (25-200 Hz)
• Signal to Noise Ratio: 75 dBA (measured at 1 watt into 4Ω)

• Power Output:
  • Full Range Channels:
    • 2Ω: 90 watts RMS x 4 (14.4 volts, =1.0% THD+N)
    • Bridged (4Ω): 180 watts RMS x 2 (14.4 volts, =1.0% THD+N)
  • Subwoofer Channel:
    • 2Ω: 300 watts RMS x 1 (14.4 volts, =1.5% THD+N)
• Signal to Noise Ratio: 90 dB (at rated power output)

Controls:

• Input Level: 2-position switch; select high (speaker-level) or low (line-level)
• Input Gain Control: independent rotary gain controls for the front (Amp 1), rear (Amp 2), and Sub channels; continuously variable from 250mV to 10V with the input level switch set to low; 1V to 40V with the input level switch set to high
• Crossovers: separate crossover controls for the front, rear, and sub channels; front and rear rotary controls range from Off to 200 Hz (high pass); sub rotary control from 50Hz to 200Hz (low pass); the slope is 12 dB/octave for all three
• Fader: 2-position switch; turn on when using dedicated front and rear inputs; leave off when only using one pair of inputs
• Sub Input: 2-position switch; Sub when using a dedicated subwoofer input, Amp 2 without a subwoofer input
• KickEQ Bass Boost: increase the subwoofer channel bass level between 0dB and +6dB via the rotary control; centered at 40Hz

Subsonic Filter: The amplifier's sub channel features a non-defeatable 25Hz Subsonic Filter with a 24dB/octave slope. The Subsonic Filter rolls off extremely low frequencies that can't be cleanly reproduced by the amplifier and subwoofers. This reduces distortion and helps the amp run more efficiently.

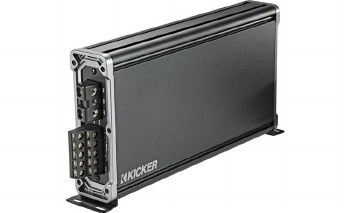

Mounting: The CX Series amplifiers can be mounted vertically, if desired, with the included mounting brackets. When mounted vertically, the dimensions are:

• Height: 6.75"
• Length: 14.125"
• Width: 2.375"
