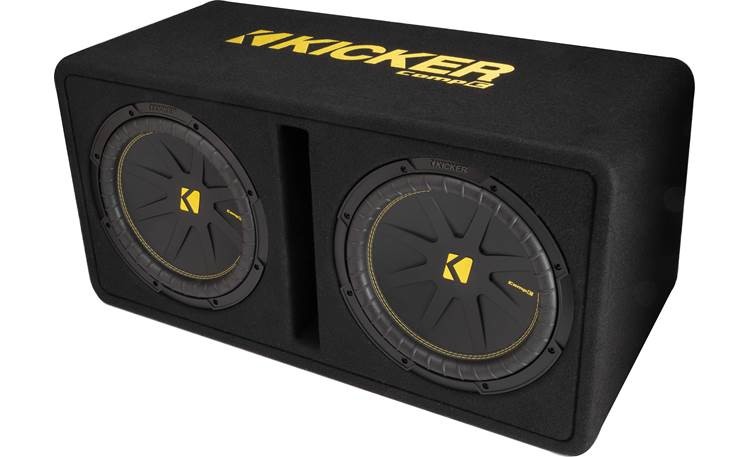

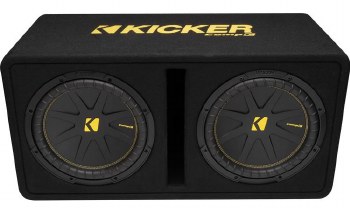

50DCWC122

CompC Woofer: The Kicker 50DCWC122 is a dual subwoofer enclosure loaded with two 12" CompC series subwoofers. The Kicker subwoofers feature a polypropylene cone with a ribbed polyurethane surround. The surround and cone are attached using Kicker's signature yellow double stitching, providing an outstanding bond. Both subwoofer drivers are internally wired in parallel for a 2-ohm load at the terminal cup.

Power: The dual subwoofer enclosure can handle 400W-600W RMS (1200W peak).

Forced Air Cooling: Kicker uses venting slots around the perimeter of the magnet, allowing air to constantly circulate around the motor and maintaining a cooler operating temperature.

Ported Enclosure: The 50DCWC122 ported enclosure is made of heavy-duty MDF (Medium Density Fiberboard) with extensive internal bracing, providing exceptional acoustic efficiency and deep powerful bass. It's covered in sleek black carpeting with yellow embroidered lettering for added protection and a refined look. The ported subwoofer enclosure features a tuning frequency of 31 Hz for deep, powerful bass.

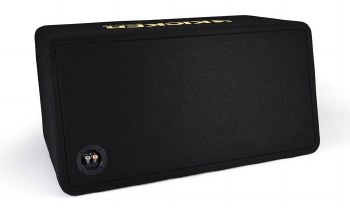

Speaker Terminals: A single pair of spring-posts are mounted on the side of the enclosure in a recessed terminal cup, and will accept pin connectors, single banana plugs, or bare wire up to 10-gauge.

• ported enclosure with two 12" CompC subwoofers
• medium-density fiberboard construction covered with carpet
• 2-ohm total impedance
• power handling: 600 watts RMS (1200 watts peak power)
• frequency response: 25-500 Hz
• sensitivity: 99.9 dB
• 32"W x 16"H x 17.25"D1 x 14"D2
