44TL7S102

Wire Terminal: The subwoofer's dual 4Ω voice coils are internally wired in parallel to present a 2Ω load at the single pair of spring post wire terminals. The terminals are mounted on the left side of the enclosure and will accept pin connectors, single or dual banana plugs, or bare wire up to 10 gauge.

Square Design: By making the Solo-Baric square, Kicker is giving you the most possible cone area (Sd) for a given size baffle, 16% to 20% more area than a conventional round subwoofer. More cone area means the Solo-Baric L7 moves more air, resulting in louder, deeper bass.

Cone Material: The square SoloKon design is a unique one-piece construction, using injection molded polypropylene that moves as a lightweight piston, for improved control. The cone remains rigid, minimizing cone flex and distortion. A rear cone brace integrates into the cone with a continuous contact perimeter weld, which improves strength and resistance to deformation under pressure.

Surround: The tough, flexible Santoprene rubber surround has a long-throw, positive-roll design, which controls extreme cone excursion and is highly tear-resistant. The corners of the surround are ribbed to ensure linear cone motion. The surround is stitched to the reinforced cone edge, making separation between them virtually impossible, even in the harshest conditions.

Subsonic Filter: Kicker recommends using a 24dB/octave subsonic filter at 25 Hz.

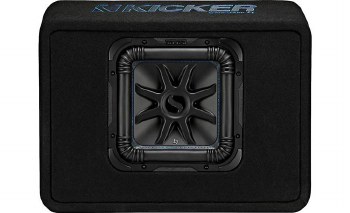

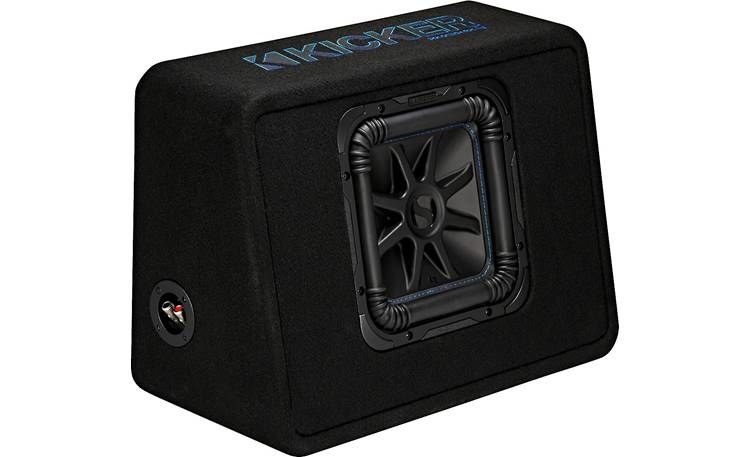

• ported enclosure with one 10" Solo-Baric L7S subwoofer
• medium-density fiberboard construction covered with carpet
• 2-ohm impedance
• handles up to 600 watts RMS (1200 watts peak power)
• sensitivity: 89.5 dB
• 21-1/2"W x 15"H x 10"D1 x 6-1/2"D2
