48TCWRT122

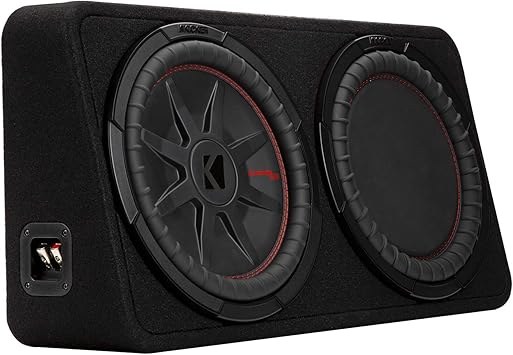

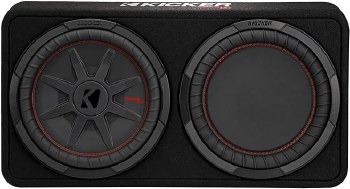

Woofer & Passive Radiator: The Kicker 48TCWRT122 enclosure is loaded with one 12" CompRT series subwoofer. The Kicker subwoofer features a polypropylene cone with a Santoprene surround. The surround and cone are attached using Kicker's signature red double stitching, providing an outstanding bond. Along with the subwoofer, the 48TCWRT122 features a 12" Kicker reFLEX passive radiator, providing extremely low bass from a compact sealed enclosure.

Forced Air Cooling: Kicker uses their SoloKon technology to join the cone to the vented back brace, creating a single integrated unit. This forces air through the motor assembly allowing it to run 20% cooler and helping eliminate distortion.

Truck-Style Enclosure: The sealed enclosure is made of heavy-duty MDF (Medium Density Fiberboard) with extensive internal bracing, providing exceptional acoustic efficiency and deep powerful bass. The enclosure is covered in sleek black carpeting for added protection and a refined look. Its compact, truck-style form allows it to be mounted behind bench seats, in cargo areas, or under some seats firing upwards.

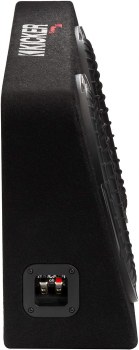

Speaker Terminals: A single pair of spring-posts are mounted on the side of the enclosure in a recessed terminal cup, and will accept pin connectors, single banana plugs, or bare wire up to 10 gauge.

Power: The single 2Ω CompRT subwoofer can handle 250W-500W RMS (1000W peak).

Break-in Period: Due to the complex nature of Kicker CompRT speakers, they require a break-in period in order to produce optimum low-bass response. The suspension system is very stiff out-of-the-box. Approximately two weeks of daily playing will allow the suspension to break-in and reach its optimum equilibrium. Once broken-in, the subwoofer will exhibit stronger bass performance, smoother response, and greater low-bass extension.

• sealed truck-style enclosure with one 12" CompRT subwoofer and passive radiator
• 3/4" medium-density fiberboard construction covered with carpet
• 2-ohm total impedance
• power handling: 500 watts RMS (1000 watts peak power)
• frequency response: 25-500 Hz
• sensitivity: 98 dB
• 27"W x 13-1/2"H x 7"D1 x 3-1/2"D2
