44KMTC94W

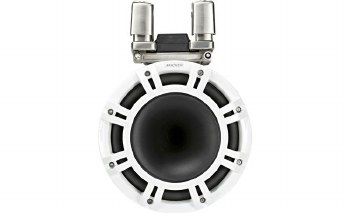

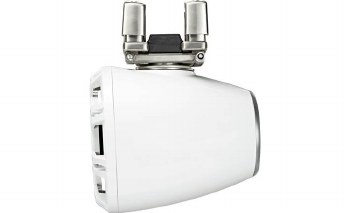

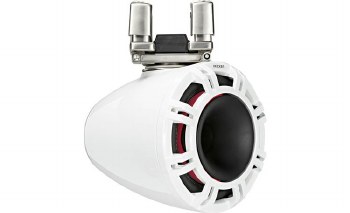

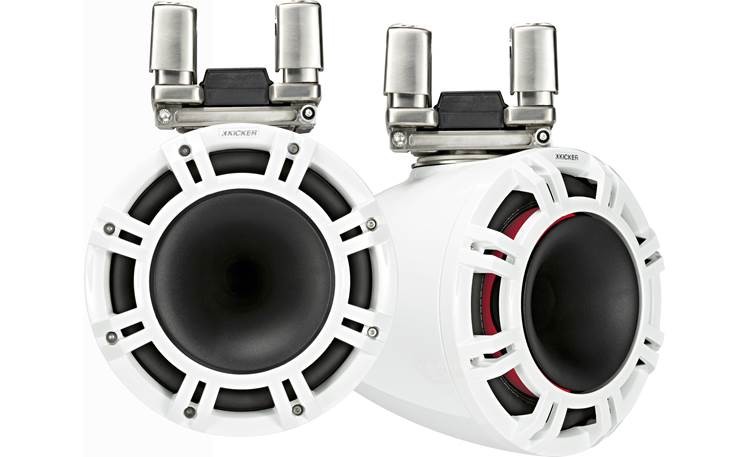

Overview: The Kicker KMTC94W wake tower speakers provide great looks and next-level sound quality for your boat. These 4 ohm, 2-way speaker pods include a 9" polypropylene woofer with a santoprene surround and a 1" titanium dome compression driver incorporating Kicker's Tractrix High-Frequency Horn Design. Both drivers are housed in a UV-resistant polymer enclosure that meets or exceeds ASTM standards for UV and salt/fog exposure. These include a 200 hour salt/fog test and a 400 hour accelerated UV test. The KMTC94W speakers can handle 300 watts of RMS power and 600 watts Peak power.

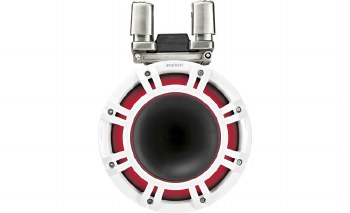

LEDs: The 2 included speaker grills have a built-in 7 color LED lighting system on the back of them that will light up the speaker cone when activated. Each speaker pod includes a 10" pigtail of 8 pre-attached wires, 4 of which are for the LEDs. The Black wire gets +12 volts while the Red, Green, and Blue wires are used to activate that color of LED when a ground is applied, giving you a total of 7 choices of colors. The optional Kicker KMLC Lighting Remote Control (sold separately) can provide up to 20 colors and 19 lighting modes.

Mounting: The KMTC94W kit includes all the hardware necessary for mounting the speakers to your wake tower. Each speaker uses a stainless steel/ABS clamp that can mount to tubing ranging from 1.5" to 3.25" in diameter. The clamps feature a tool-free locking cam/toggle system that allow the speakers to quickly and easily be swiveled up to 359˚.

Speaker Wiring: Each speaker includes a multi-pin plug, built into the mounting base, that simply slides into a receiving plug built into the upper mounting bracket. This allows the speakers to be detached and re-attached without having to cut or re-splice speaker wires. Each upper mounting bracket has a built-in wire harness with bare-ended wires for the drivers as well as the built-in LEDs. One pair of wires powers the woofer while a second set of wires powers the tweeter.

Wire Colors:

• Horn Tweeter:
  • Transparent Copper: Tweeter +
  • Transparent Silver: Tweeter -
• Woofer:
  • Transparent Blue: Woofer +
  • Transparent Gray: Woofer -
• RGB LEDs:
  • Black: +12V
  • Red: Ground
  • Blue: Ground
  • Green: Ground

• 2-way 9" marine wakeboard tower speakers (pair)
• UV-treated polypropylene woofer with Santoprene rubber surround
• Tractrix high-frequency horn with 1" titanium-dome compression driver
• 359° swiveling clamp system
• 7-color LED grilles included
• optional KMLC remote controls 20 color options and 19 dynamic modes
• sealed motor structure and locking terminal covers
• stainless steel mounting hardware included
• UV-resistant polymer basket
• handles up to 300 watts RMS (600 watts peak power)
• frequency response: 20-20,000 Hz
• sensitivity: 92 dB
• impedance: 4 ohms
• dimensions: 13-9/16"H (including bracket) x 9-13/16"W x 10-7/8"D
