47KMFC11

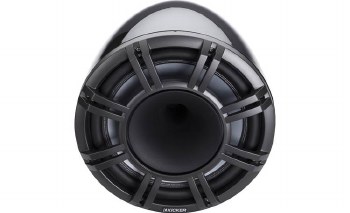

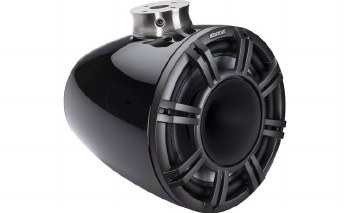

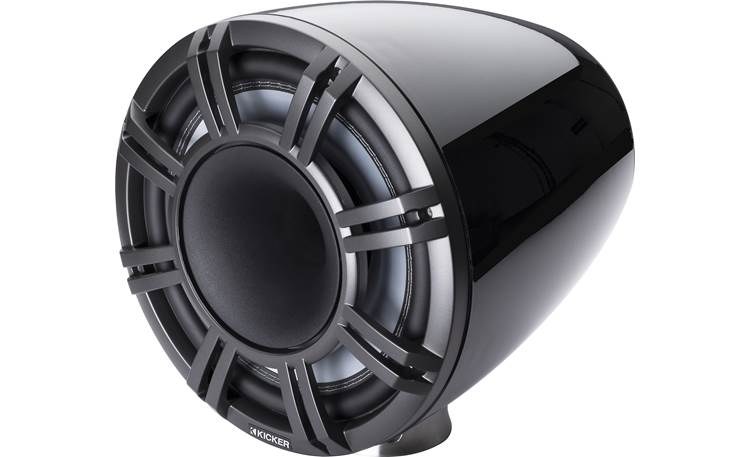

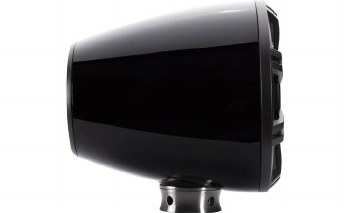

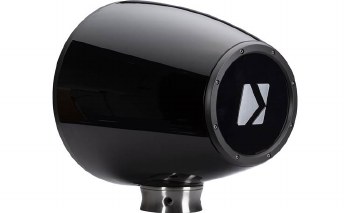

Overview: The Kicker KMFC11 wake tower speakers provide great looks and incredible sound quality for your boat. These 4 ohm, 2-way speaker pods include an 11" polypropylene woofer with a santoprene surround and a 1.4" HLCD (Horn-Loaded Compression Driver) titanium dome compression driver. This provides an incredibly smooth sound up close or at a distance, without the typical harsh horn "glare". Both drivers are housed in a UV-resistant polymer enclosure that meets or exceeds ASTM standards for UV and salt/fog exposure. These include a 200 hour salt/fog test and a 400 hour accelerated UV test. The KMFC11 speakers can handle up to 300 watts (RMS) and 600 watts (peak) power.

LEDs: The 2 included speaker grilles have a built-in 7 color LED lighting system on the back of them that will light up the speaker cone when activated. Each speaker pod includes a 12" removable harness with 6 bare-ended wires, 4 of which are for the LEDs. The Black wire gets connected to +12 volts while the Red, Green, and Blue wires are used to activate that color of LED when a ground is applied, giving you a total of 7 choices of colors. The optional Kicker KMLC Lighting Remote Control (sold separately) can provide up to 20 colors and 19 lighting modes.

Mounting: The KMFC11 features a built-in mounting base and an attachable mounting bracket that's designed to mount the speakers to flat factory tower speaker hardpoints with 2.5" bolt spacing and hidden wire capability. Three bolting configurations are available for maximum flexibility: Bolt-thru mounting, Bolt-to mounting, and Stud mounting.

Hidden Speaker Wiring: Each speaker includes a 12" 6-pin wiring harness that plugs into the base of the speaker inside the mounting bracket, allowing the wiring to remain hidden. The wiring harness can simply be unplugged from the base of the speaker if removing the speaker.

Wire Colors:

• Speaker:
  • Transparent Blue: Woofer +
  • Transparent Gray: Woofer -
• RGB LEDs:
  • Black: +12V
  • Red: Ground
  • Blue: Ground
  • Green: Ground

• 2-way 11" marine wakeboard tower speakers (pair)
• UV-treated polypropylene woofer with Santoprene rubber surround
• Tractrix high-frequency horn with 1" titanium-dome compression driver
• mount compatible with flat factory tower speaker hardpoints with 2-1/2" bolt spacing
• allows for hidden wiring
• 7-color LED grilles included
• optional KMLC remote controls 20 color options and 19 dynamic modes

Marine Features:

• sealed motor structure
• stainless steel mounting hardware included
• UV-resistant polymer basket
• passed the ASTM G154 400 hr. Accelerated UV Test
• passed the ASTM B117 200 hr. Salt Fog Test

Specs:

• handles up to 300 watts RMS (600 watts peak power)
• frequency response: 20-20,000 Hz
• impedance: 4 ohms
• sensitivity: 93 dB at 1 watt
