43C154

Speaker Terminals: The spring-loaded, nickel-plated terminals provide solid connections for speaker wire up to 10-gauge. Single banana plugs and pin connectors will also fit.

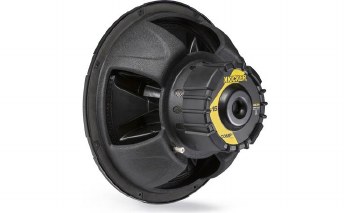

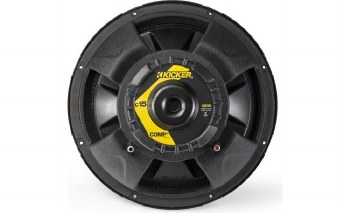

Rubber Magnet Boot: A black rubber boot covers the outside edge of the magnet structure to improve the cosmetics of the woofer and protect the magnet during installation.

Sealed Enclosure Applications: Kicker recommends sealed enclosure volumes from 2.25 ft³ to 5 ft³. Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable for all types of music.

Ported Enclosure Applications: Kicker recommends ported enclosure volumes from 3 ft³ to 4 ft³. Slot port dimensions are given in the manual for the minimum enclosure volume (15-1/2" x 2-1/2" x 17") and the maximum enclosure volume (15-1/2" x 3" x 16-1/4"). Ported (or vented) enclosures typically provide better overall efficiency than sealed, so they are suitable for use with smaller amplifiers, giving you more bass output from less power. However, this efficiency comes at the expense of very low frequency output.

• 4-ohm 15" subwoofer
• injection-molded polypropylene cone
• ribbed foam surround
• power handling: 120-250 watts RMS
• peak power handling: 500 watts
• frequency response: 25-500 Hz
• sensitivity: 90.3 dB
• top-mount depth: 7-7/16"
• sealed box volume: 2.25 - 5.0 cu. ft.
• ported box volume: 3.0 - 4.0 cu. ft.
• grille not included
