50CWCS124

Speaker Terminals: The terminals are spring loaded for solid connections with speaker wire up to 10-gauge.

Recommended Sealed Box Volume:

• Minimum Volume: 1.0 ft³
• Maximum Volume: 2.0 ft³

Recommended Vented Box Volume:

• Minimum: 1.75 ft³; 2" x 12½" port opening; 16" port length
• Maximum: 2.25 ft³; 2" x 12½" port opening; 16⅜" port length

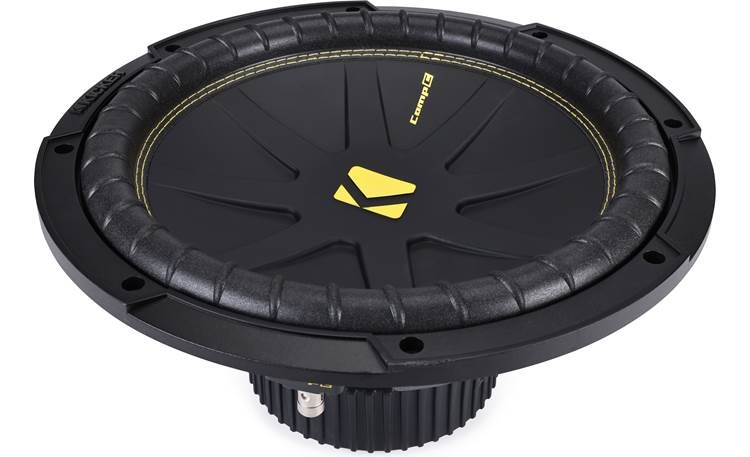

• 12" 4-ohm subwoofer
• injection-molded polypropylene cone
• ribbed foam surround
• handles up to 300 watts RMS
• peak power handling: 600 watts
• frequency response: 27-500 Hz
• sensitivity: 87.3 dB
• top-mount depth: 5.75"
• mounting height: 0.8"
• cutout diameter: 10.961
• sealed box volume: 1.0 - 2.0 cu. ft.
• ported box volume: 1.75 - 2.25 cu. ft.
