PIONEER
TS-D12D2

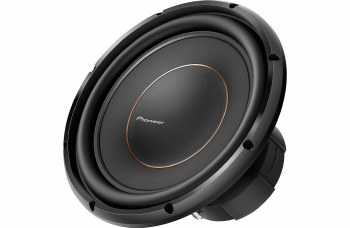

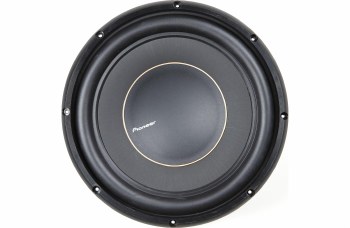

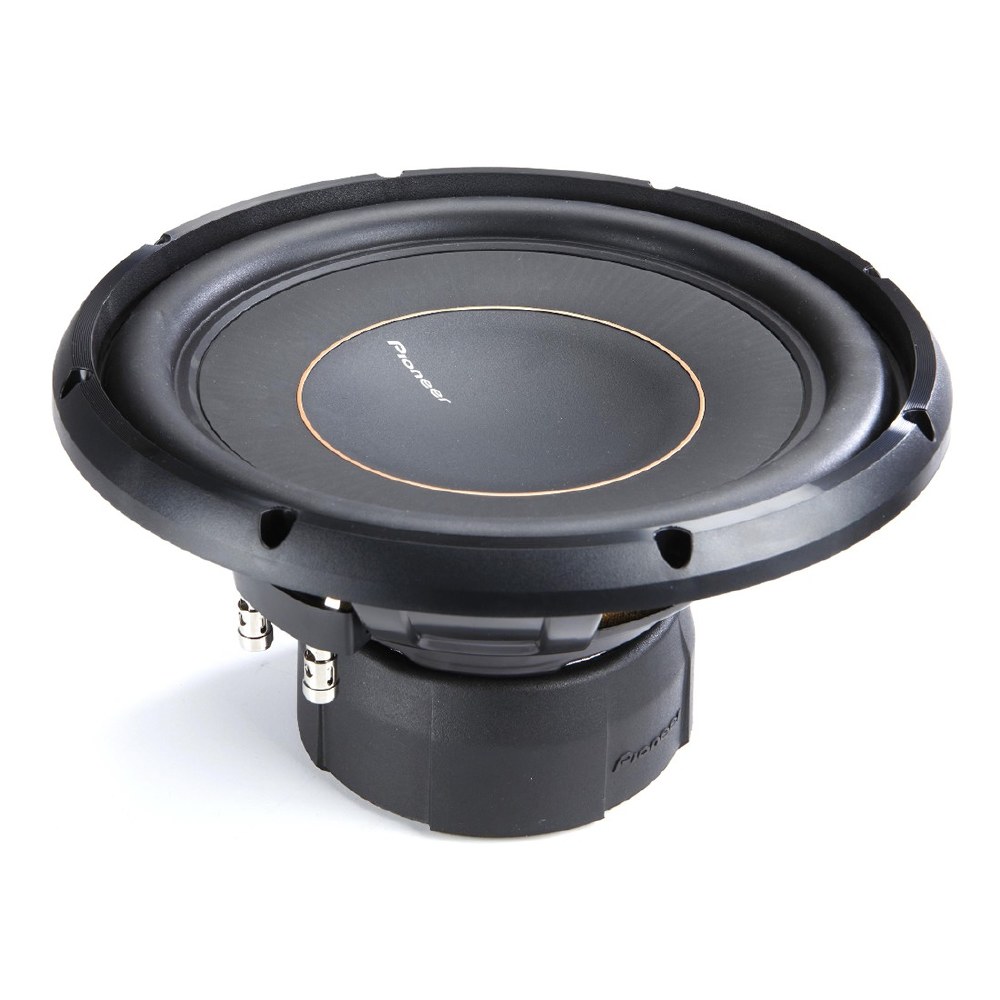

12" - 2000w Max Power, Dual 2 ohm Voice Coil, Aramid Fiber IMPP Cone, Rubber Surround - Subwoofer
- Woofer Cone: Pioneer uses aramid fiber interlaced injection molded polypropylene (IMPP) for the cone, making it more rigid than polypropylene alone.
- Dual 2Ω Voice Coils: This woofer features two 2Ω voice coils, offering wiring flexibility. When the voice coils are wired in parallel, the woofer presents a 1Ω load; when wired in series, the woofer presents a 4Ω load.
- Terminals: The spring post terminals will accept pin connectors, single banana plugs, or bare wire up to 10 gauge.
- Sealed Box Volume: The sealed box sizes recommended by Pioneer range from 0.8 ft³ to 1.2 ft³; within this range the ideal size is 1.0 ft³.
- Vented Box Volume: The vented box sizes recommended by Pioneer range from 0.8ft³ to 1.2 ft³; within this range the ideal size is 1.0 ft³ with a single 3" diameter x 6" long port.
- Double-stacked Magnet: The woofer uses double-stacked magnets to create a powerful magnetic force. This increases the control exerted over the voice coil.
- Free-Air: The woofer can also be mounted in free air to a baffle board (infinite baffle, no enclosure). When mounted in free air, the power handling is reduced by 75% (to 150 watts).
- Measurements: When mounting the woofer without the trim ring, the dimensions change as follows:
- Mounting Height: 0.564"
- Flange Height: 0.165"
- Frame Diameter: 12.26"
- Size 12 -inch
- Impedance (Ohms) 1, 4
- Cone Material Aramid Fiber Interlaced IMPP
- Surround Material Butyl Rubber
- Port diameter (inches) 3
- Port length (inches) 6
- Free-Air Yes
- Dual Voice Coil Yes
- Sensitivity 76 dB at 1 watt
- Frequency Response 20 - 4700 Hz
- Max RMS Power Handling 600
- Peak Power Handling (Watts) 2000
- Top Mount Depth (inches) 6 3/16
- Bottom Mount Depth (inches) N/A
- Cutout Diameter or Length (inches) 11
- Vas (liters) 46.2
- Fs (Hz) 33
- Qts 0.64
- Xmax (millimeters) 13
- Parts Warranty 1 Year
- Labor Warranty 1 Year
- Box Requirements
- Ideal Sealed Box Volume (cubic feet) 1
- Minimum Sealed Box Volume (cubic feet) 0.8
- Maximum Sealed Box Volume (cubic feet) 1.2
- Ideal Ported Box Volume (cubic feet) 1
- Minimum Ported Box Volume (cubic feet) 0.8
- Maximum Ported Box Volume (cubic feet) 1.2
