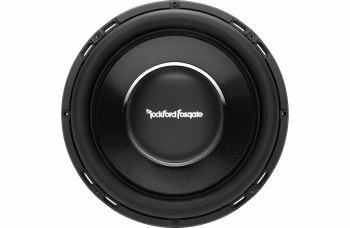

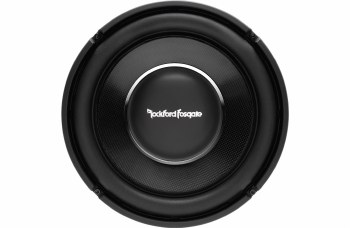

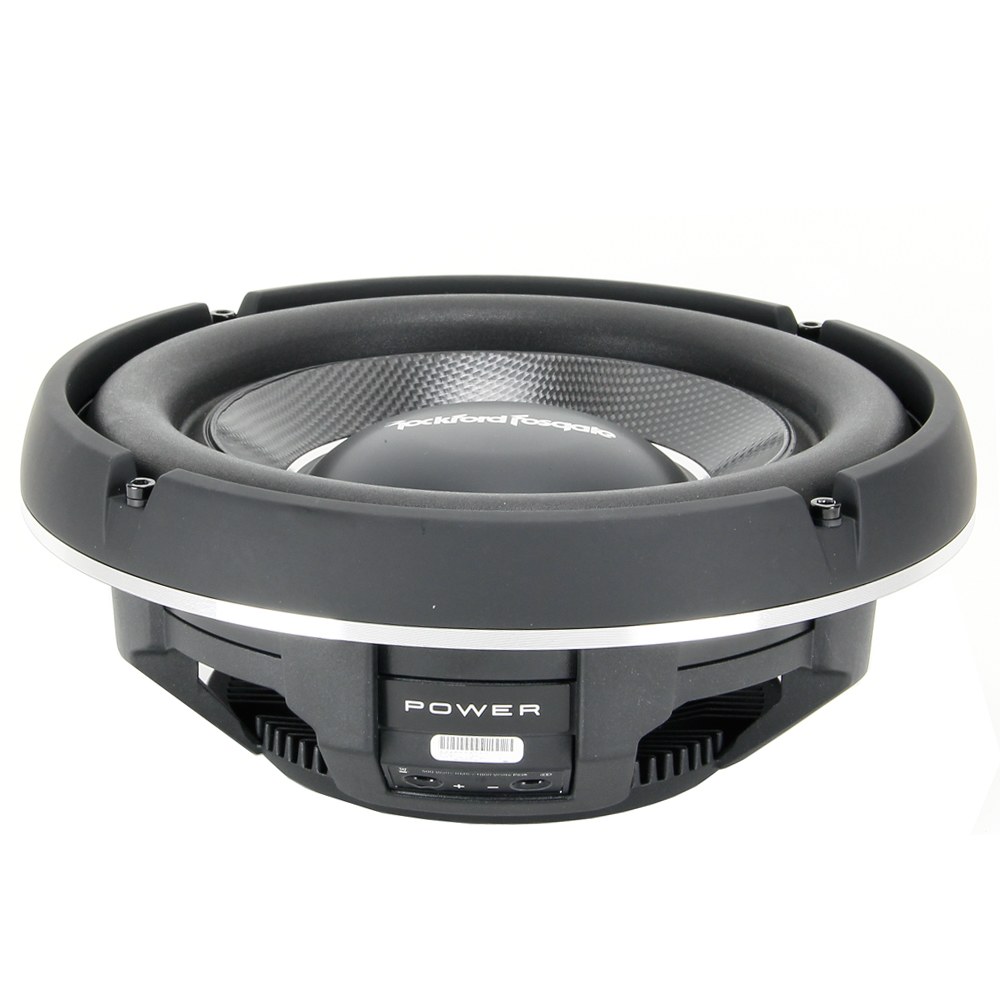

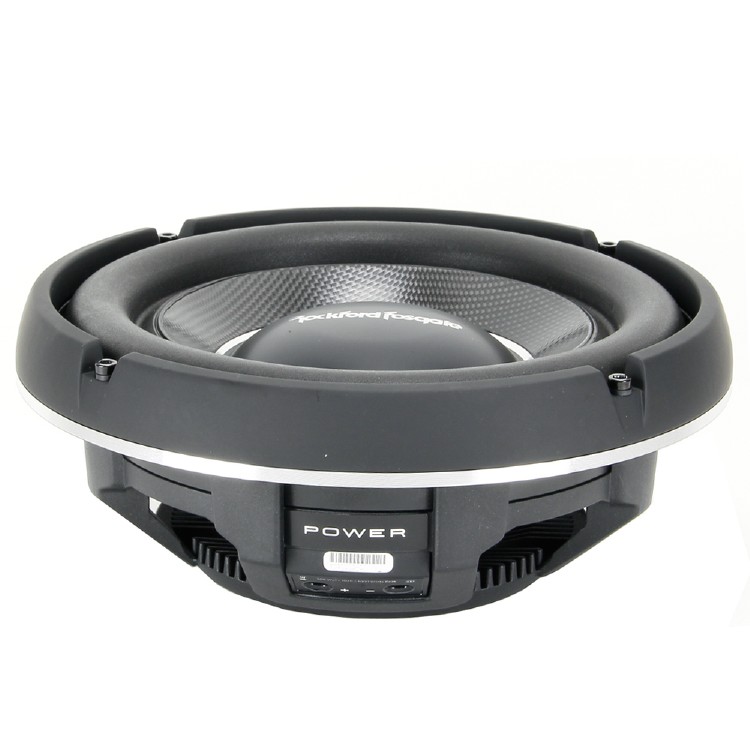

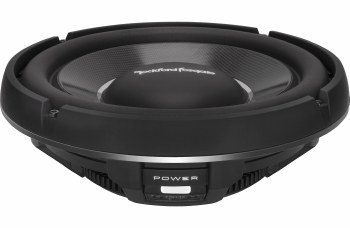

T1S1-12

• 12" 1-ohm component subwoofer
• carbon fiber/PMI/glass fiber cone with aluminum dustcap
• injection molded foam surround
• Vertical Attach Surround Technique (VAST) increases cone area
• patent-pending motor technology
• handles up to 600 watts RMS (1200 watts peak)
• frequency response: 27-250 Hz
• sensitivity: 85 dB
• top mount depth: 3"
• sealed box volume: 1 cubic foot
• ported box volume: 2 cubic feet
• grille not included
• warranty: 1 year
• 60-day returns
• MFR # T1S1-12

• Size    12 -inch
• Impedance (Ohms)    1
• Cone Material    Carbon/PMI/Glass Fiber
• Surround Material    Injection Molded Foam
• Port diameter (inches)    4
• Port length (inches)    13
• Free-Air    No
• Dual Voice Coil    No
• Sensitivity    85 dB at 1 watt
• Frequency Response    27 - 250 Hz
• Max RMS Power Handling    600
• Peak Power Handling (Watts)    1200
• Top Mount Depth (inches)    3 1/16
• Bottom Mount Depth (inches)    N/A
• Cutout Diameter or Length (inches)    11 3/16
• Vas (liters)    32.2
• Fs (Hz)    36
• Qts    0.89
• Xmax (millimeters)    15
• Parts Warranty    1 Year
• Labor Warranty    1 Year

Box Requirements

• Ideal Sealed Box Volume (cubic feet)    1.1
• Minimum Sealed Box Volume (cubic feet)    0.75
• Maximum Sealed Box Volume (cubic feet)    1.25
• Ideal Ported Box Volume (cubic feet)    2
• Minimum Ported Box Volume (cubic feet)    N/A
• Maximum Ported Box Volume (cubic feet)    N/A

Rockford Fosgate Power T1S1-12 owner's manual
