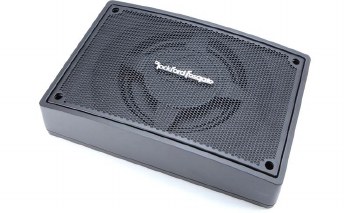

PS-8

• 8" powered shallow-mount subwoofer
• built-in Class-D amplifier (150 watts RMS)
• adjustable 12 dB/octave crossover
• phase control (0/180 degrees)
• onboard Punch EQ control
• remote bass level controller included
• high/low level input select
• 3-way (remote/DC offset/signal sense) turn-on select
• short-circuit, thermal, and reverse polarity protection

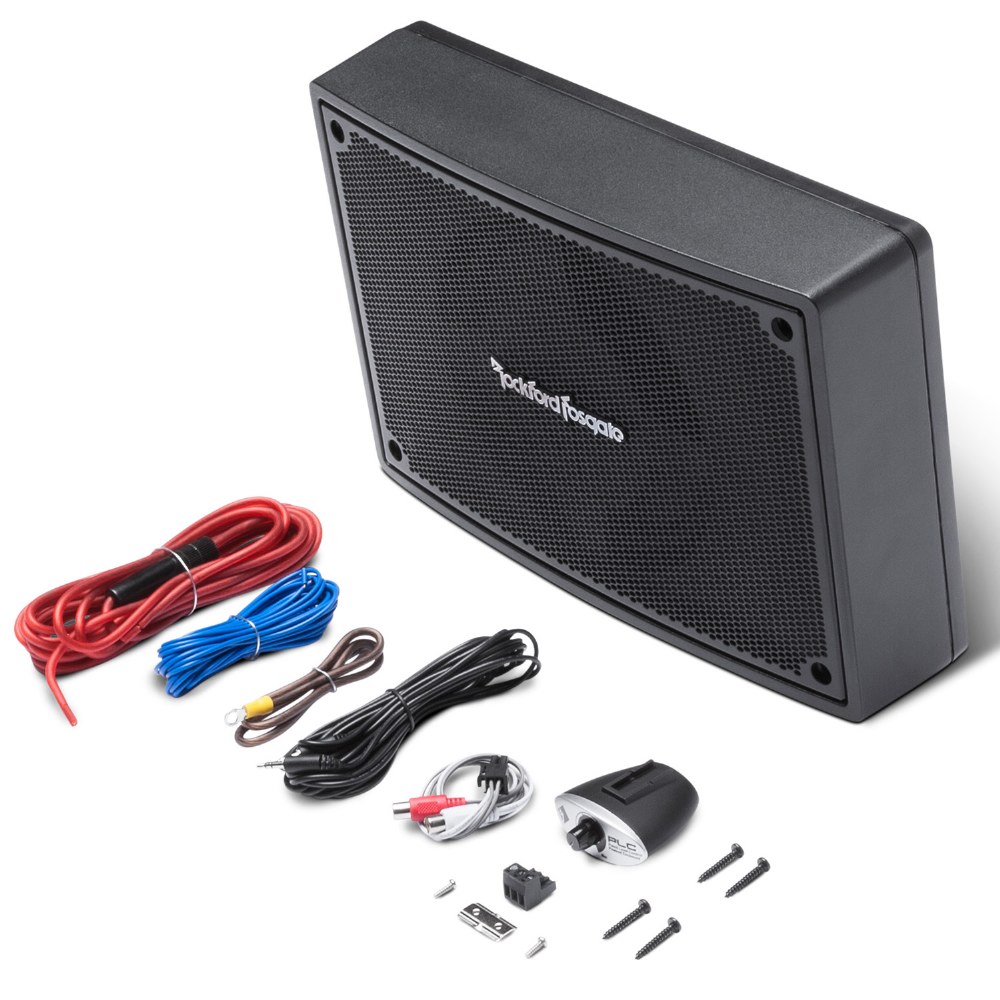

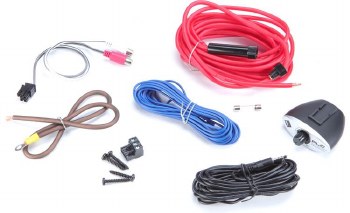

• power, ground, and turn-on wires and mounting hardware included
• dimensions: 14-1/2"W x 9-1/2" D x 3-3/8"H
• warranty: 1 year
• 60-day returns
• MFR # PS-8

• Enclosure Type    Sealed
• Finish Material    Cast Aluminum
• Grille    Steel
• Connector Type    Harness
• Quick-disconnect Plug    Yes
• Bi-amp Inputs    No
• Woofer Size (inches)    8
• Woofer Material    Not given
• Passive Radiator    ---
• Width    14-7/16"
• Height    3-7/16"
• Depth    9-1/2"
• Parts Warranty    1 Year
• Labor Warranty    1 Year

Specifications

• Frequency Response    25-120
• Amplifier Power (RMS)    150 watts
• Maximum Wattage    300 watts
• Sensitivity    N/A
• Impedance    N/A
• Second Voice Coil Impedance    N/A
• Crossover Point    50-120

Rockford Fosgate PS-8 owner's manual
