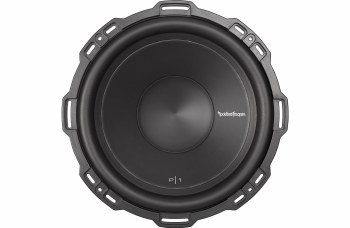

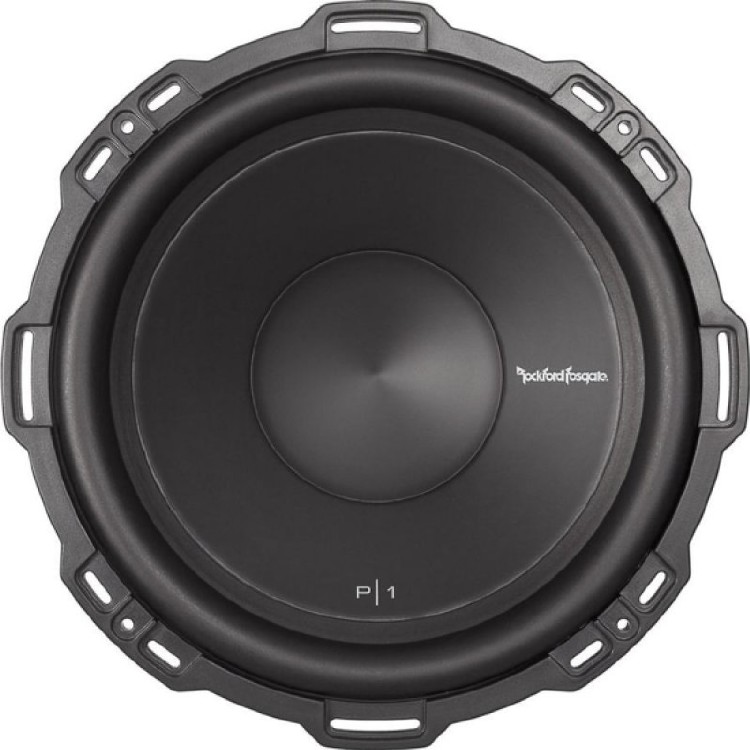

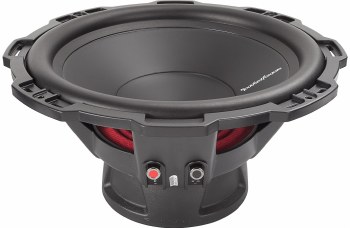

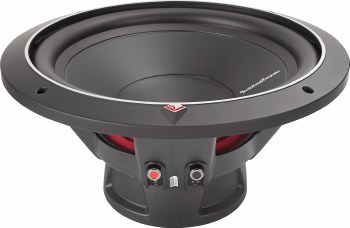

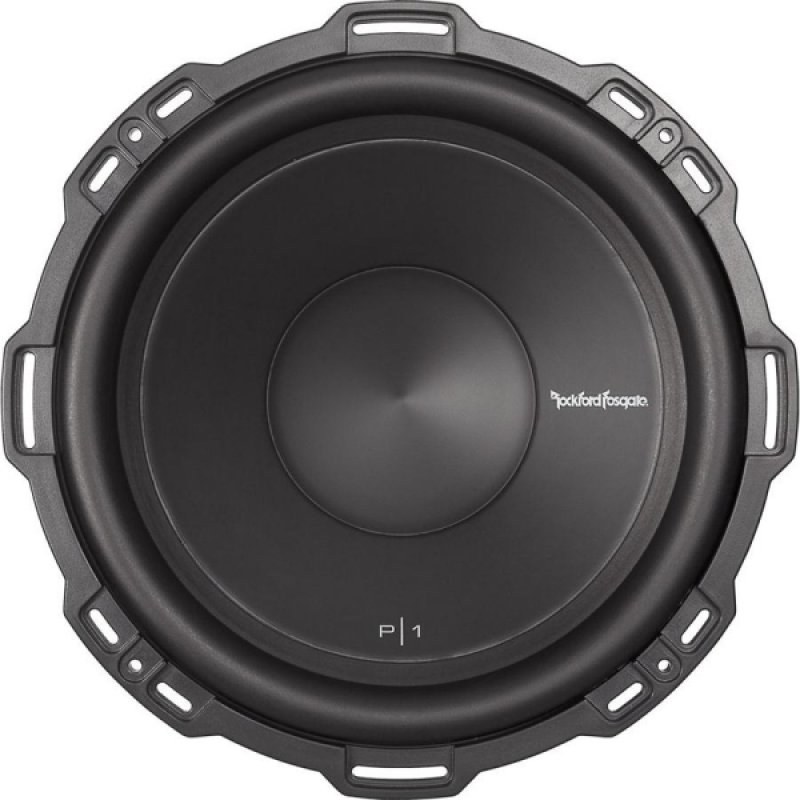

P1S2-12

• 12" 2-ohm subwoofer
• Kevlar® reinforced paper cone
• nitrile butadiene rubber (NBR) surround
• hybrid StampCast basket provides strength while minimizing weight and resonance
• Vertical Attach Surround Technique (VAST™) increases cone area
• power range: 50-250 watts RMS (500 watts peak power)
• frequency response: 20-250 Hz
• sensitivity: 86 dB
• top-mount depth: 6"
• sealed box volume: 0.7-1.8 cubic feet
• ported box volume: 1.79 cubic feet
• grille not included
• warranty: 1 year
• 60-day returns
• MFR # P1S2-12

• Size    12 -inch
• Impedance (Ohms)    2
• Cone Material    Kevlar reinforced paper
• Surround Material    NBR
• Port diameter (inches)    3
• Port length (inches)    6
• Free-Air    No
• Dual Voice Coil    No
• Sensitivity    86 dB at 1 watt
• Frequency Response    20 - 250 Hz
• Max RMS Power Handling    250
• Peak Power Handling (Watts)    500
• Top Mount Depth (inches)    6
• Bottom Mount Depth (inches)    N/A
• Cutout Diameter or Length (inches)    11 1/16
• Vas (liters)    88.3
• Fs (Hz)    25
• Qts    0.55
• Xmax (millimeters)    9
• Parts Warranty    1 Year
• Labor Warranty    1 Year
• Box Requirements
• Ideal Sealed Box Volume (cubic feet)    1.02
• Minimum Sealed Box Volume (cubic feet)    0.7
• Maximum Sealed Box Volume (cubic feet)    1.8
• Ideal Ported Box Volume (cubic feet)    1.79
• Minimum Ported Box Volume (cubic feet)    N/A
• Maximum Ported Box Volume (cubic feet)    N/A

Rockford Fosgate Punch P1S2-12 owner's manual
