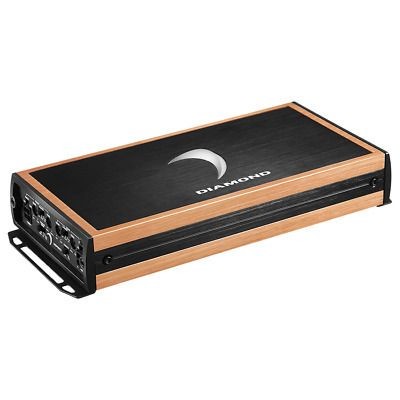

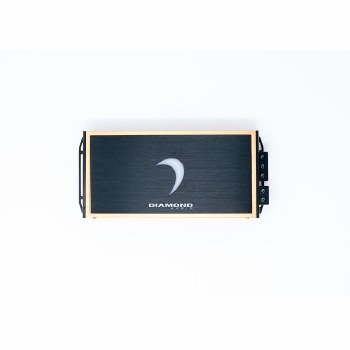

MICRO81U

• Power Output: 300W RMS x 1CH @ 2Ω / 175W RMS x 1CH @ 4Ω
• Input Sensitivity: 0.2-10 Volt
• Crossover Filter : 40-400Hz (LPF), 24dB Per Octave Slope
• Frequency Response: 10-350Hz
• Selectable REM / VOX / DC Turn On Modes
• Dimensions: 9" x 4.06" x 1.52" (228.6 x 103.124 x 38.608 mm)
• Remote Bass Knob Included
• Disconnected RCA Input Harness Kits Included

• Amplifier    1 Channel
• Description    MICRO81U
• MAX Power Rating    600 W RMS
• RMS Power (1Ω)    600 W X 1
• RMS Power(2Ω)    300 W X 1
• RMS Power (4Ω)    175 W X 1
• RMS Bridge (mono 1Ω)    600 W X 1
• RMS Bridge (mono 2Ω)    300 W X 1
• RMS Bridge (mono 4Ω)    175 W X 1
• Types    Monoblock, Class D
• Topology    Class D
• Power Supply    Full PWM
• Power Supply (Threshold)    10.0VDC – 17.0VDC
• Idle Current    (0.7A)
• Distortion - THD (1KHz@4Ω)    0.5%
• Distortion - S/N Ratio (A weight @ 1W)    -85dBA
• Distortion - S/N Ratio (A weight @ FP)    -101.1dBA
• Input Sensitivity Low    200mV – 10V
• Input Sensitivity High    N/A
• Input Impedance - Low Input Level    20 KΩ
• Input Impedance - AUX Input Level    20 KΩ
• Output Impedance    0.011Ω
• Damping Factor (50Hz@4Ω)    >250
• Bandwidth (-3dB)    10Hz-350Hz
• Crossover (-12 dB/ Oct) Variable High-Pass    40Hz-400Hz
• Crossover (-12 dB/ Oct) Variable Low-Pass    40Hz-400Hz
• Crossover (-12 dB/ Oct) Variable Sub-Sonic    10Hz-55Hz
• FUSE Ratings - ATC    25A
• Remote    Bass Volume Control
• Dimension - Length x Width x Height - Inches(mm)    9" x 4.06" x 1.52" (228.6 x 103.124 x 38.608 mm)
