LC2i

• Two channels of active speaker level inputs (up to 40V input handling)
• Fixed and variable outputs with discrete level controls
• AccuBASS® processing for correction of bass roll-off
• Load Selection Switch
• GTOTM Signal Sensing
• Ground Isolation Switch
• ACR-1 dash remote inluded
• Compact design

inputs

• Speaker Level Input: 1 (2 channels)
• Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
• Input Impedance (selectable): 20Ω, 60Ω, 20kΩ

outputs

• Preamp Outputs: 2 (2 channels main, 2 channels bass)
• Maximum Output Level: 9.5Vrms/13V peak
• Output Gain: +/- 12 dB
• Output Impedance: 150Ω

performance

• Total Harmonic Distortion: 0.01%
• Signal to Noise: >110 dB
• Frequency Response: 20 Hz – 50 kHz ±1 dB

control

• Remote In / GTO™ Signal Sense / Audio Sense
• 12VDC Remote Out (always active when unit is on)

general

• Current Draw: 200 mA

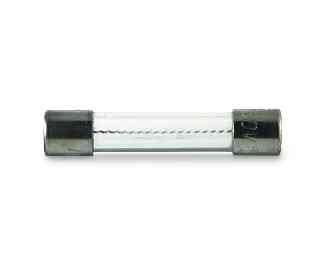

• Recommended Fuse Rating: 1 A

weights & dimensions

• Dimensions: 6.9″L x 3″D x 1″H (including speaker connectors)
• Weight: 0.75 lbs. (0.34 kg)

in the box: LC2i PRO, ACR-1, 20′ Phone Cable, Speaker and Power connectors, Manual, Warranty
