KIT-MUS2

Head Unit Connection: The KIT-MUS2 supports iDatalink's ACC-HU-PIO1 adapter harness for direct connection to a compatible Pioneer modular-style receiver (including the DMH-C2550NEX, DMH-C5500NEX, DMH-WC5700NEX, and DMH-WC600NEX) - replacing the wiring harness that comes with your aftermarket stereo (some hardwiring may still be required).

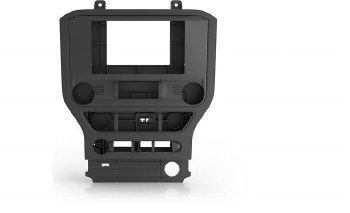

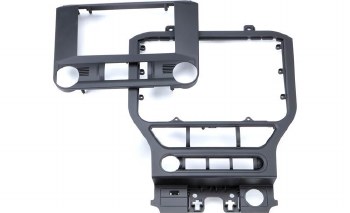

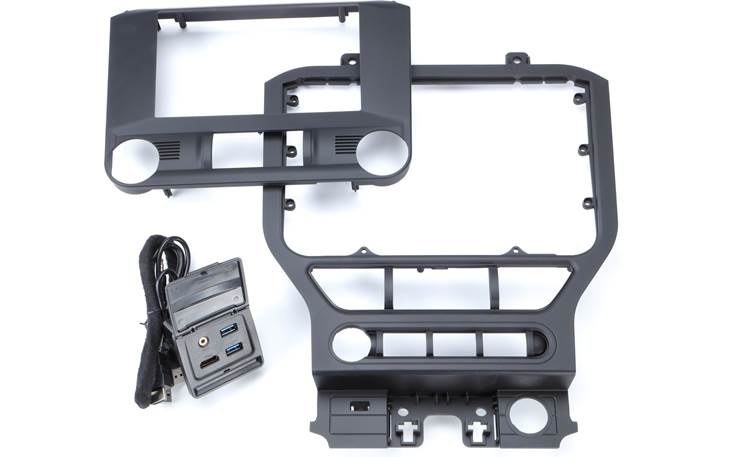

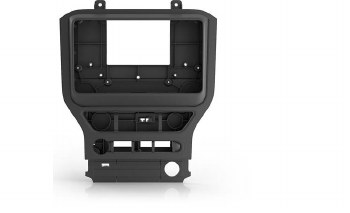

OEM Grade Fit & Finish Kit: The KIT-MUS2 dash kit features a factory grade fit & finish to match the contour and color of your For mustang's dash. This OEM integration kit specifically fits 2019-2023 Pioneer modular-style receivers (such as the DMH-C2550NEX, DMH-C5500NEX, DMH-WC5700NEX, and DMH-WC600NEX).

Note: Modification of the sub-dash is required.

Retained Features: The following factory features (if applicable) are retained when replacing your factory radio with a compatible Pioneer modular-style receiver using the Maestro RR or RR2 Car Radio Replacement Interface module and KIT-MUS2 installation package.

• Factory Amplifier: Retains factory premium audio amplifier (including Sony & THX) with turn-on, fader, gain adjustment, DSP settings, and speed compensated volume.
• Steering Wheel Controls: Factory steering wheel controls are retained with two function buttons and expandable radio functions.
• Vehicle Settings: Access and modify factory vehicle settings through the compatible aftermarket head unit's touchscreen.
• Secondary Vehicle Display: Secondary vehicle display is retained (if factory equipped) with audio information and hands-free information
• Advanced Camera Features: Factory backup camera is retained with dynamic parking guidelines and park assist chimes (chime speaker included); your aftermarket head unit must have a composite video rearview camera input. The factory 360 camera feature is also retained (if factory equipped). If you add an aftermarket front camera (sold separately) to your idatalink compatible head unit that is equipped with multiple camera inputs, the vehicle's factory auto camera switching feature is also retained.
• USB Port Retention: The included USB retention harness allows you to retain the vehicle's factory USB port. As long as your new car stereo has a high-amperage charging port (1.5A or greater), this USB adapter harness should support Apple CarPlay and Android Auto operation. However, the number of variables involved means we can't guarantee compatibility.
• RAP & Warning Chimes: The vehicle's RAP (Retained Accessory Power) & Warning Chimes are retained.

Extra Features: The following extra features are retained when replacing your factory radio with a compatible Pioneer modular-style receiver using the Maestro RR or RR 2Car Radio Replacement Interface module and KIT-MUS2 installation packages.

• Vehicle Info: Tire Pressure Display, Battery Voltage Display, Read/Reset Engine Codes, and Door Open Status with Warning.
• Gauges: Selectable Performance Gauges, "Track Pack" Gauges, and Read/Reset Check Engine Codes.

Outputs: The KIT-MUS2 provides Navigation, Accessory Power, and Illumination Outputs to make installation simpler.

• Navigation: Parking Brake, Reverse Light, and VSS (Vehicle Speed Sense).
• Accessory Power Output: 12V/15A Accessory Power Output
• Illumination Output: Illumination Output

• install select modular-style Pioneer receivers in select 2015-23 Ford Mustang vehicles
• requires Maestro ADS-MRR or ADS-MRR2 module (sold separately)
• retains your factory steering wheel controls, settings, and amplifier
• retains warning chimes, retained accessory power (R.A.P.), and secondary vehicle display (if equipped)
• adds vehicle information display and performance gauges
• supplies illumination and accessory power leads NAV outputs (parking brake, reverse, and VSS [Vehicle Speed Sense])
• retains factory backup camera with dynamic parking guidelines and park assist chimes (requires composite video rearview camera input)

USER MANUAL

The iDatalink Maestro KIT-MUS2 consists of an OEM integration dash kit and vehicle harness designed specifically for the 2015-2023 Ford Mustang equipped with a factory 4.2" LCD screen.
