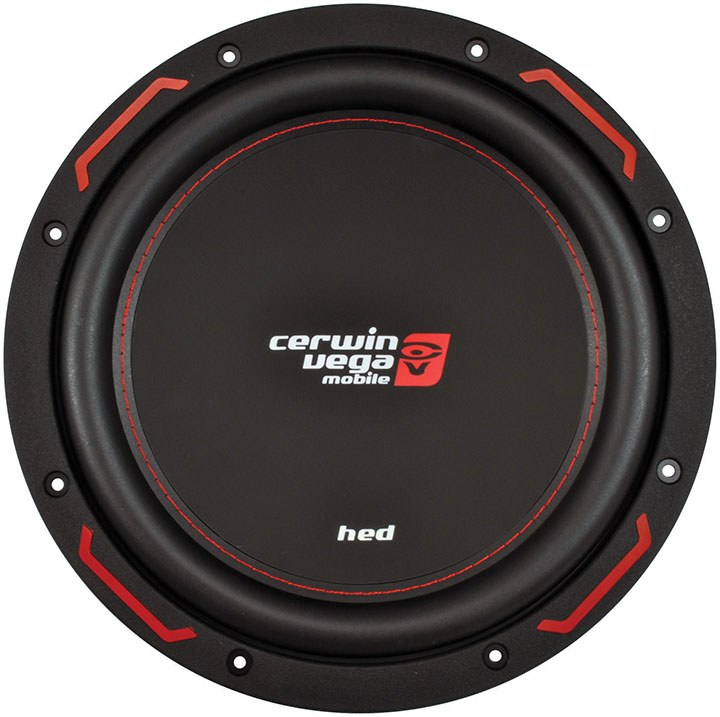

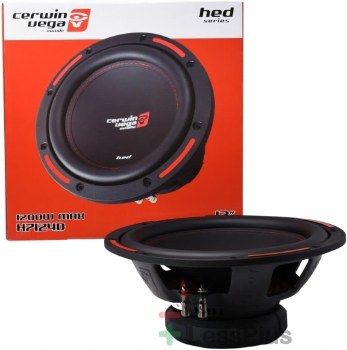

H7124D

• 12” Dual 4-ohm High-Energy Subwoofer
• 250W RMS / 1200W MAX Power Handling
• Mounting Diameter: 11.14” / 283mm
• Mounting Depth: 5.35“ / 135.9mm

• Subwoofer Size    12”
• Nominal Impedance (ohms)    4Ω
• RMS Power Rating    250W
• Max Power Rating    1400W
• SPL (db)    87.0
• Re (Ω)[series]    2Ω/8Ω
• Qms    9.7
• Qes    0.67
• Qts    0.63
• Fs-Free Air Resonance (Hz)    27
• Vas (Liter)    87
• Sd (cm²)    0.049
• BL (T*M)    8
• Xmax - Inch(mm)    8
• Cms (mm/N)    0.25
• Mms (g)    137
• Pwr (W) NOM/MAX    250/1400
• Total Diameter    12.7” (322.6mm)
• Mounting Diameter (inch/mm)    10.82” (259.0mm)
• Mounting Depth    5.35” (135.9mm)
• Magnet Diameter (E)    6.5” (165.1mm)
• Grille    NO
