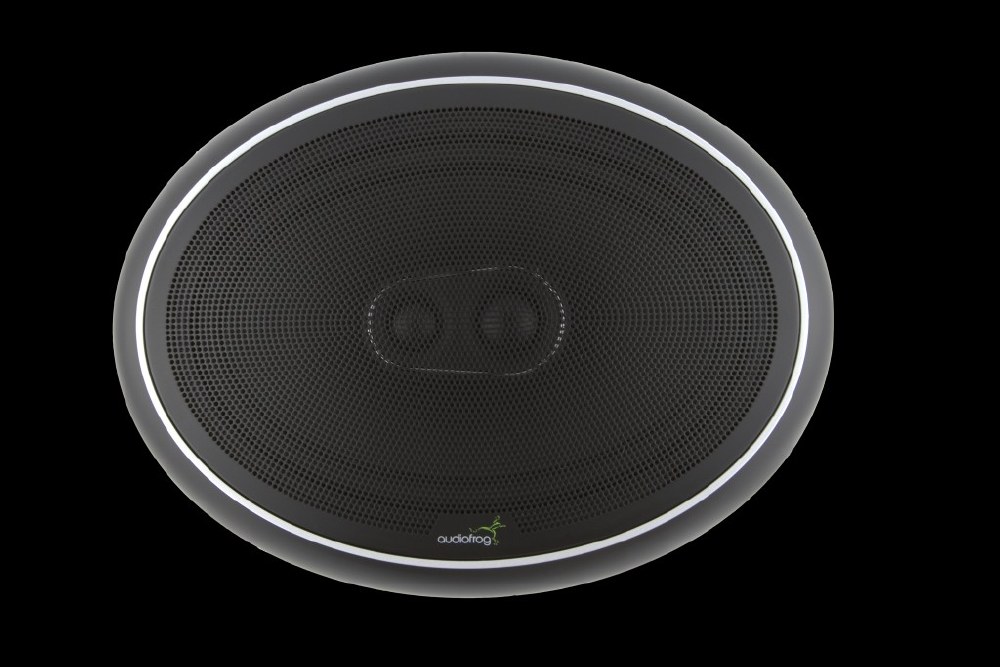

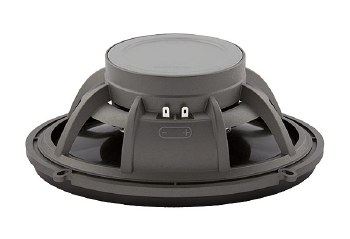

GS693

• Injection molded ABS plastic and fiberglass vented basket
• Parabolic polypropylene cone
• Nitrile butadiene rubber surround
• 1” (25mm) copper voice coil on Kapton® former
• Flat progressive Nomex® spider
• Ferrite magnet
• 1” (25mm) and 3/4″ (20mm) fabric dome neodymium tweeters
• Tweeters include reflection absorbing and diffusing foam pad
• Low-profile tweeter waveguide helps to provide smooth transition to the midrange
• Fast-on terminals secured with integrated PC board
• Integrated passive crossover (12dB/octave high pass and 6dB/octave low pass)
• Grille included

• Nominal Impedance: 4Ω
• RMS Power Handling: 100 W (with recommended crossover)
• Peak Power Handling: 300 W (with recommended crossover)
• Frequency Response: 42 Hz – 20 kHz
• Sensitivity (2.83 V/1 M): 92 dB
• Recommended Amplifier RMS Power Range: 15 W – 75 W

Dimensions:

Frequency Response Graph:

Thiele & Small Parameters:

• Revc: 2.31 Ω
• Levc@1kHz: 0.22 mH
• Sd: 221 cm²
• Mmd: 21.6 g
• Mms: 23.46 g
• Cms: 314 µM/N
• Vas: 21.9 liters
• Fs: 58.6 Hz
• BL: 5.43 TM
• Qms: 8.64
• Qes: .068
• Qts: 0.63
• Xmax (1-way linear): 5 mm (7/32”)
• Basket Displacement: 0.42 liters (0.015ft³)
