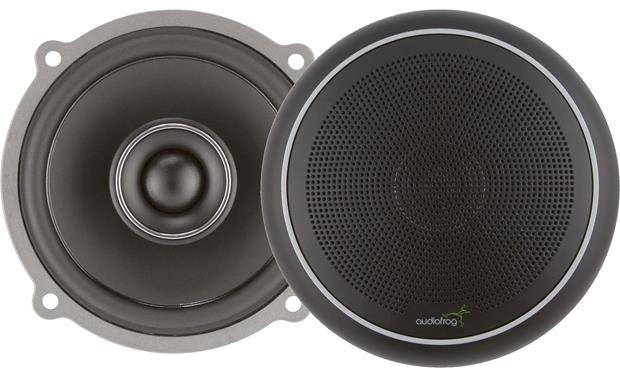

GS42

• Injection molded ABS plastic and fiberglass vented basket
• Parabolic polypropylene cone
• 1” (25mm) copper voice coil on Kapton® former
• Flat progressive Nomex® Spider
• Ferrite magnet
• 3/4” fabric dome neodymium tweeter
• Tweeter includes reflection absorbing and diffusing foam pad
• Low-profile tweeter waveguide helps to provide smooth transition to the midrange
• Fast-on terminals secured with integrated PC board
• Integrated passive crossover (12dB/octave high pass and 6dB/octave low pass)
• Grille included

• Nominal Impedance: 4Ω
• RMS Power Handling: 50 W (with recommended crossover)
• Peak Power Handling: 150 W (with recommended crossover)
• Frequency Response: 90 Hz – 20 kHz
• Sensitivity (2.83 V/1 M): 88 dB
• Recommended Amplifier RMS Power Range: 15 W – 75 W

Dimensions:

Frequency Response Graph:

Thiele & Small Parameters:

• Revc: 2.33 Ω
• Levc@1kHz: 0.08 mH
• Sd: 50.30 cm²
• Mmd: 3.14 g
• Mms: 4.19 g
• Cms: 287 µM/N
• Vas: 1.02 liters
• Fs: 145.8 Hz
• BL: 3.06 TM
• Qms: 5.74
• Qes: 0.99
• Qts: 0.80
• Xmax (1-way linear): 3.2 mm (5/32”)
• Basket Displacement: 0.113 liters (0.004ft³)
