FLTW-7624

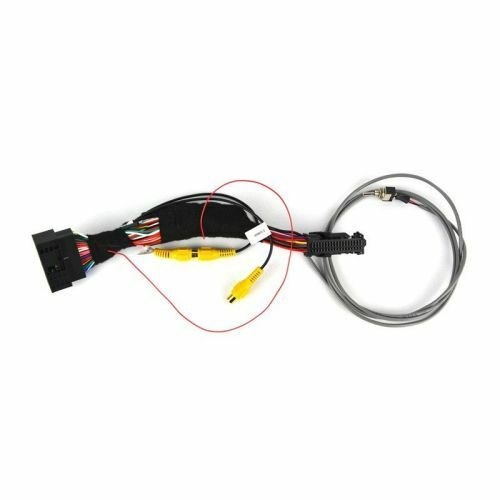

Overview: The Brandmotion T-harness is designed to allow drivers of select 2013-2019 Ford F-Series trucks equipped with 8" factory displays with factory Rear Vision, to switch views between dual rear-facing cameras. This could include tailgate backup cameras and aftermarket cargo or trailer cameras. The harness comes configured to use a factory reverse camera along with another aftermarket camera (not included, sold separately), but can also be used with two aftermarket cameras. The t-harness installs behind the factory display unit and includes two video plugs; Video 1 and Video 2. Out of the box, Video 1 is pre-connected to the OEM Cam Out plug, for use with a factory reverse camera, but can be disconnected if using an aftermarket reverse camera. Video 2 is open-ended for the second aftermarket camera connection. When the included toggle switch is in Position 1, it enables the Video 1 input when in reverse. Likewise, when the toggle switch is in Position 2, it enables Video 2 input to display while in reverse.

Compatible Vehicles:

• 2013-2018 Ford F-150 trucks with 8" factory display and factory Rear Vision.
• 2017-2019 Ford Super Duty with 8" factory display and factory Rear Vision.

Notes:

• The factory display must currently change to rear camera mode when the vehicle is put into reverse, whether there's a factory reverse camera or not, otherwise the vehicle will need to be flashed by a dealership or an optional backup camera interface must be installed (sold separately).
• Not compatible with factory Ford 360˚ systems.

• vehicle-specific T-harness for dual-camera integration
• integrates Ford factory backup cam with Brandmotion cargo cam
• for use with with Ford 8" MyTouch factory radio (not compatible with Ford 360° system)
• includes camera switch
