DYNACORE 1 in (12 sq ft)

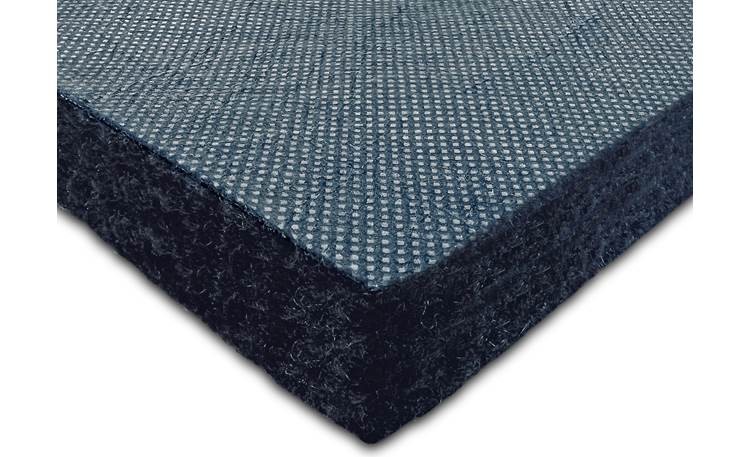

Overview: Dynamat DynaCore (1") Black Thermo-Acoustic Fiber is designed to both dissipate sound and absorb heat. Its unique construction allows it to be lightweight, flexible, and compressible, while still retaining excellent absorption and thermal insulating properties. DynaCore includes one 54" x 32" x 1.0" sheet of heat/noise absorber with peel-off adhesive backing. The sheet's facing is resistant to moisture, UV light, gasoline, and temperatures up to 350°. A 1/2" thick version of the DynaCore 54" x 32" sheet is available here.

Applications:

• Vehicle Engine Compartment: The Dynamat DynaCore Black Thermo-Acoustic Fiber can be used for lining the inside of your vehicle hood and firewall, minimizing heat and noise from entering the interior.

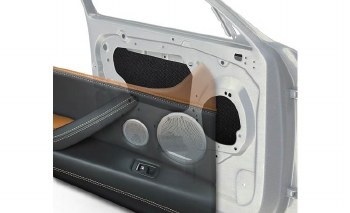

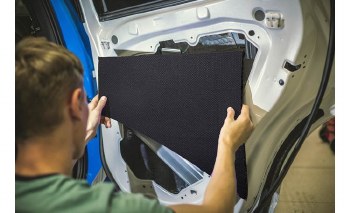

• Vehicle Interior: DynaCore can provide excellent noise-absorption for your vehicle door interior, speaker openings, and more. The thermo-acoustic fiber material can installed behind speakers to help eliminate speaker back-wave distortion, panel vibration, and block road noise.

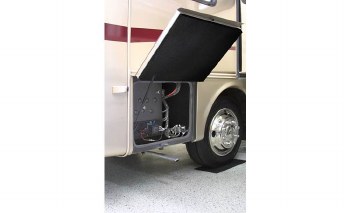

• Marine & RV: Dynamat DynaCore can be used to line boat and marine-craft engine compartments. It can also be used to line the inside of RV "doghouse" engine covers and inside generator housings.

Compliance: Dynamat DynaCore is compliant with UL94, MVSS 302, UL HF1, and UL HBF standards.

• Fiber:
  • Material: Fire-retardant fiber blend
  • Coverage Area: 54" x 32"
  • Thickness: 1.0"
  • Color: Black
  • Temperature Range: -40° F to 350° F
  • Flammability: Passes MVSS 302, UL HF1, UL HBF
  • Glow Wire Ignition Temp (GWIT): 1292° F
  • Glow Wire Flammability Index (GWFI): 1382° F
• Facing:
  • Material: Proprietary fiber blend
  • Thickness: 0.020"
  • Color: Black
  • Chemical Resistance: Resistant to moisture, UV, and gasoline
