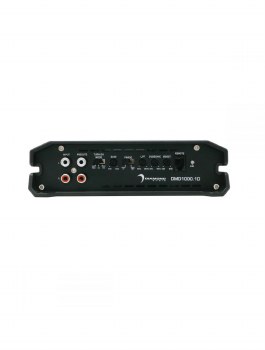

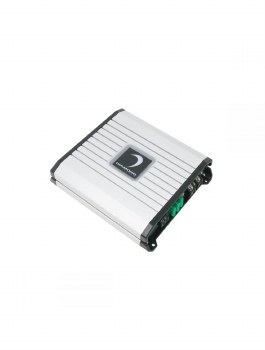

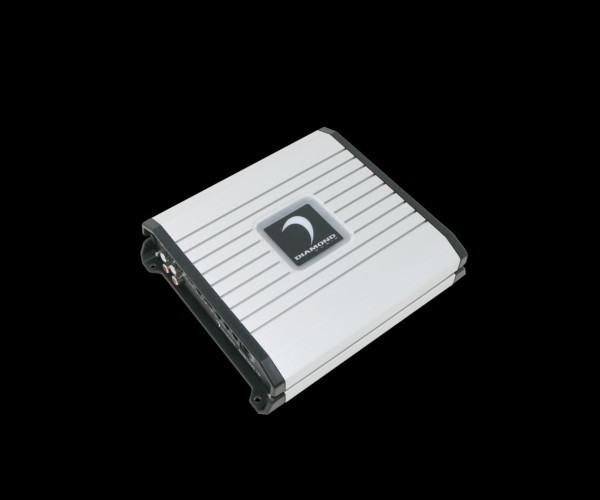

DMD1000.1D

• 1 Channel Mono Block Digital Amplifier
• 1000W x 1CH @ 2Ω / 680W x 1CH @ 4Ω RMS Power Output
• Input Sensitivity: 0.2-10 Volt
• Crossover Filter : 50-250Hz (LPF), 24dB Per Octave Slope
• Frequency Response: 20-500Hz
• Signal to Noise Ratio: > 90dB
• Bass Boost: 0-18dB
• Overall Operation Efficiency: >88%
• Selectable REM / VOX / DC Turn On Modes
• Variable Phase Adjustment
• Dimensions: 8.0” x 6.85” x 1.9” / 203.1 x 174 x 48.4 mm
• Remote Bass Knob Included

• Amplifier    1 Channel
• RMS Power(2Ω)    1000 W
• RMS Power (4Ω)    680 W
• Topology    Full-Range Class D
• Power Supply    Full PWM
• Power Supply (Threshold)    10.0VDC – 17.0VDC
• Idle Current    (0.7A)
• Distortion - THD (1KHz@4Ω)    0.3%
• Distortion - S/N Ratio (A weight @ 1W)    -76.7dBA
• Distortion - S/N Ratio (A weight @ FP)    -96.7dBA
• Input Sensitivity Low    0.2mV – 10.0V
• Input Sensitivity High    YES – UP to 25 W RMS
• Input Impedance - Low Input Level    22 KΩ
• Output Impedance    0.051Ω
• Damping Factor (50Hz@4Ω)    >70
• Bandwidth (-3dB)    10Hz-350Hz
• Crossover (-12 dB/ Oct) Variable High-Pass    50Hz-250Hz
• Crossover (-12 dB/ Oct) Variable Low-Pass    35Hz-350Hz
• Crossover (-12 dB/ Oct) Variable Sub-Sonic    N/A
• FUSE Ratings - ATC    3 X 40A
• Dimension - Length x Width x Height - Inches(mm)    8.0" x 6.85" x1.9" ( 203.1 x 174 x 48.4mm)
