BE1200.1D

• MODEL 1200W High Output MONOBLOCK Amplifier
  Up to 900 W X 1 RMS @ 1 ohm
  Up to 450 W X 1 RMS @ 2 ohm
  Up to 225 W X 1 RMS @ 4 ohm
• Monoblock, Class D, MOSFET Power Supply
• High and Low Level Inputs,
• Fixed High Pass Crossover, Variable Low Pass Crossover, Variable Bass Boost and Variable Subsonic Filter
• Include

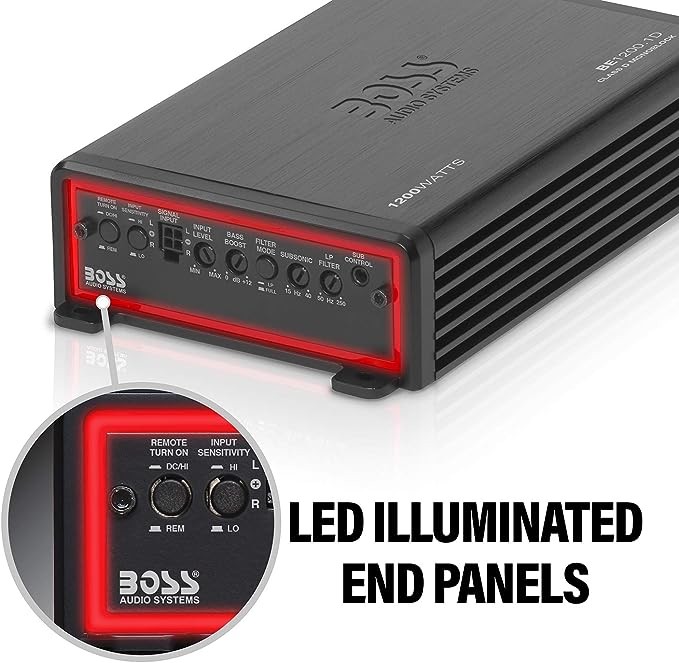

• Illuminated End Panel Strips 5 Years Elite Warranty
• Dimensions: 7.8" L x 4.6" W x 1.7" H

• Amp Topology    Monoblock, Class D
• Power Supply Type    MOSFET Power Supply
• Performance Specs    Total Power Output    1200 Watts
• Peak Power @ 1 Ω    1200 Watts x
• Peak Power @ 2 Ω    600 Watts x
• Peak Power @ 4 Ω    300 Watts x
• RMS Power @ 1 Ω    900 Watts x
• RMS Power @ 2 Ω    450 Watts x
• RMS Power @ 4 Ω    225 Watts x
• Speaker Impedance    1 to 8 Ω
• T.H.D. (Total Harmonic Distortion)    0.01 %
• Frequency Response    9 Hz to " " ±1 dB
• Connections, Controls, and Processing    RCA Inputs    2 Channel
• High Level Inputs    ✔
• Low Pass Filter    50 Hz to Hz
• High-Pass Filter    Fixed " " Hz " " Hz
• Subsonic Filter    15 Hz to Hz
• Bass Boost    Variable " " " " " " dB
• Input Sensitivity Switch    ✔
• Thermal/Overload/Short Protection    ✔
• Measurement    Length    7.8 "
• Width    4.6 "

USER MANUAL
