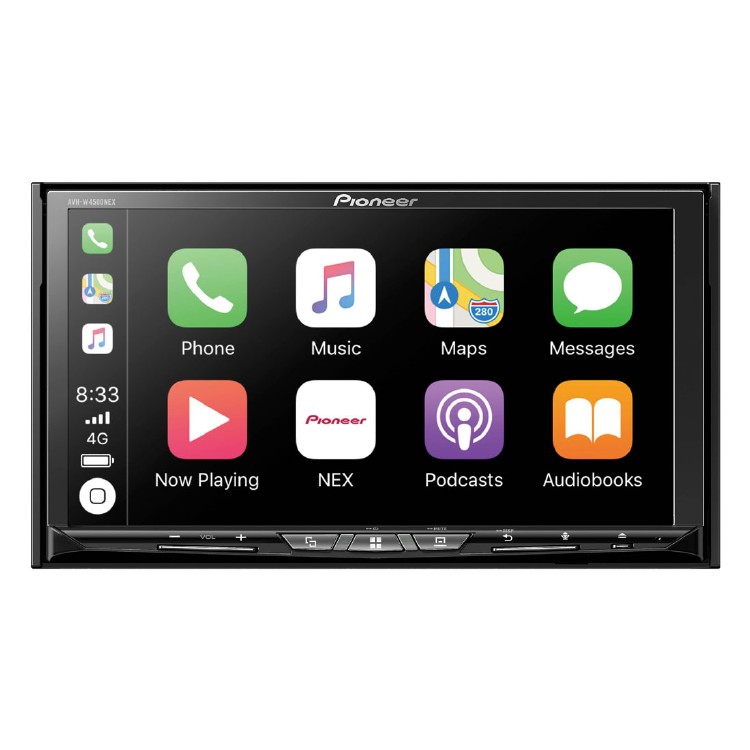

AVH-W4500NEX

General Features:

• DVD/CD receiver with 6.94" touchscreen and AM/FM tuner
• fits double-DIN (4" tall) dash openings
• built-in Bluetooth for hands-free calling and audio streaming
• built-in HD Radio tuner
• 5 display colors, 112 key color options
• detachable face
• remote control
• plays lossless FLAC audio files (up to 192kHz/24-bit) from flash media

Smartphone Features:

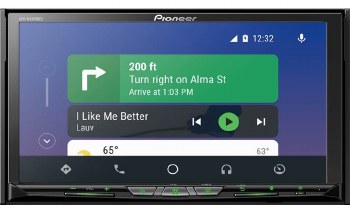

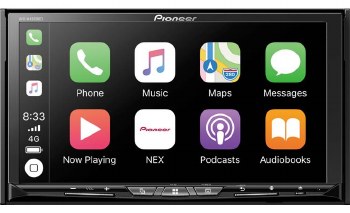

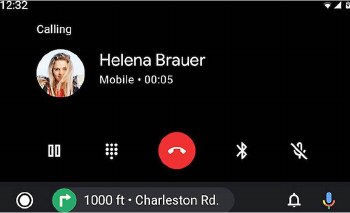

• works with wireless and wired Apple CarPlay and Android Auto
• WebLink for in-dash control of select apps, including YouTube and Yelp (Apple iOS 10.0+, Android OS 5.0+)
• Siri Eyes Free control with compatible iOS devices
• Wi-Fi Certified Miracast™ for wireless screen-mirroring of select Android devices
• Pandora control through iPhone and Android

Audio/video Features:

• plays CDs, DVDs, and USB drives (see Details for full capabilities)
• 13-band graphic EQ with Easy EQ preset equalizer
• Auto EQ with Time Alignment (optional CD-MC20 mic required)
• low- and high-pass filters with adjustable crossover points
• Advanced Sound Retriever enhances compressed digital files
• dual-zone A/V output

Expandability:

• compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
• inputs: HDMI input; dual rear USB inputs; 2 rear A/V inputs; one camera input (A/V input can be used for a 2nd camera)
• outputs: 6-channel preamp outputs (4-volt front, rear, subwoofer); composite video output

Other Information:

• wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
• built-in amplifier (14 watts RMS/50 watts peak x 4 channels)
• CTA-2006 compliant
• compatible with iDatalink Maestro module
  • retains factory features in a wide selection of vehicles
  • displays engine performance and other vehicle data on touchscreen
• works with steering wheel audio controls (adapter required)
