Audio Frog

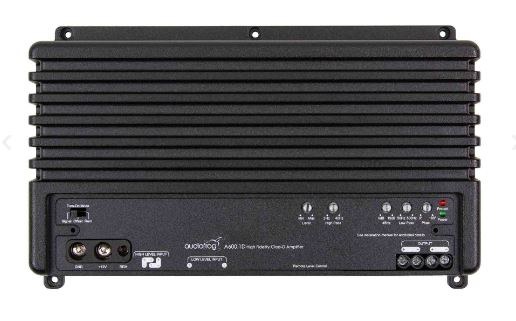

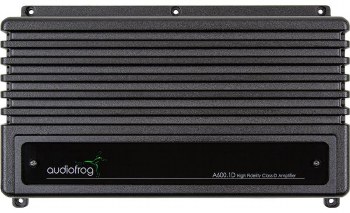

A600.1D
High Fidelity Class D Amplifier, 450 Watts x 1 @ 4 ohms, 600 Watts x 1 @ 2 ohms, Built-in High Pass and Low Pass Filters with Variable Phase Control, Line and Speaker Level Inputs, Remote Level Control Ready with Level Sync
- Input Type: Differential
- Input Sensitivity (Line Level Inputs): 0.5 Vp – 10 Vp
- Maximum Input Voltage (Speaker Level Inputs): 30 Vp
- Input Impedance (Line Level Inputs): 10 kΩ
- Input Impedance (Speaker Level Inputs): 1.2 kΩ
- Turn On Modes: Signal Sense, 6 V Offset Detect, Remote Turn On
- Signal Sensing Turn On Threshold (Line Level Inputs): 45 mVp
- Signal Sensing Turn ON Threshold (Speaker Level Inputs): 800 mVp
- Crossover Filter Slope: 12 dB/Oct
- Crossover Filter Type: Bandpass, Highpass, None
- Crossover Frequency Ranges: HP: 5 Hz – 40 Hz; LP: 50 Hz – 500 Hz
- Phase Control: 0° – 180°
- Bass Boost @ 45 Hz: 0 – 15 dB
- Quiescent Current Draw: 0.9 A
- Maximum Current Draw: 60 A
- Required Power Line Fuse: 60 A
- Dimensions: 210 mm x 126mm X 32 mm (8-17/64” x 4-61/64” x 1-17/64”)
- Power Output @ 4 Ω: 450 Watts x 1 Channel
- Power Output @ 2 Ω: 600 Watts x 1 Channel
- THD @ Rated Power: 0.1%
- THD @ 20% of Rated Power: 0.02%
- Signal to Noise Ratio @ 1 Watt: 80 dB
- Signal to Noise Ratio @ Rated Power: 108dB
- Frequency Response (=/- 1dB): 10 Hz – 400 Hz
- Damping Factor @ 4 Ω: >600
