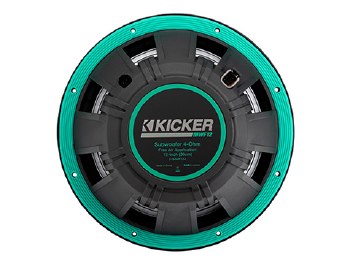

51MWF124

Real Marine® Design: Part of Kicker's Real Marine design, the MWF124 subwoofer (51MWF124) carries an IP66 waterproof rating and has gone through rigorous testing to ensure it meets or exceeds marine industry standards, including ASTM B117 200 hr. salt/fog test and ASTM G154 400 hr. accelerated UV test.

Subwoofer Construction: The Kicker MWF124 features a stiff polypropylene cone co-molded to a TPE surround for durability and resonance control. The subwoofer basket is constructed of glass-infused nylon for improved thermal performance and durability.

Free-Air Mounting: The MWF124 is designed to produce heavy bass without the need for an enclosure or box space. The subwoofer can be mounted to a baffle or bulkhead in a free-air configuration.

Power: The 4-ohm MWF124 subwoofer can handle 225-450 watts RMS (900 W peak).

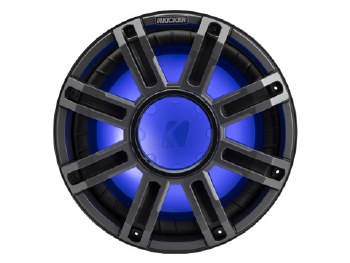

RGBW Lighting: The MWF124 subwoofer outfitted with a built-in 7 color LED lighting system on the back of the grille frame that will light up the speaker cone when activated. The subwoofer includes an 11" input harness with RGBW LED wiring. The harness is terminated in a watertight connector on one end and bare-ended wires on the other end. The Black wire gets connected to a +12 volt source while the Red, Green, Blue, and White wires are used to activate their corresponding color when a ground is applied. The optional Kicker KMLC Lighting Remote Control (sold separately) can provide a multitude of lighting modes.

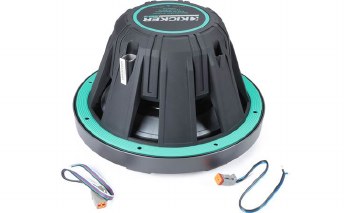

Wiring: The Kicker MWF124 features two watertight connection ports for both the speaker and RGBW LED wiring. Two included 11" harnesses feature matching watertight connectors on one end, for plugging into the subwoofer, and bare-ended wires on the other end for attaching to your amplifier and LED lighting control.

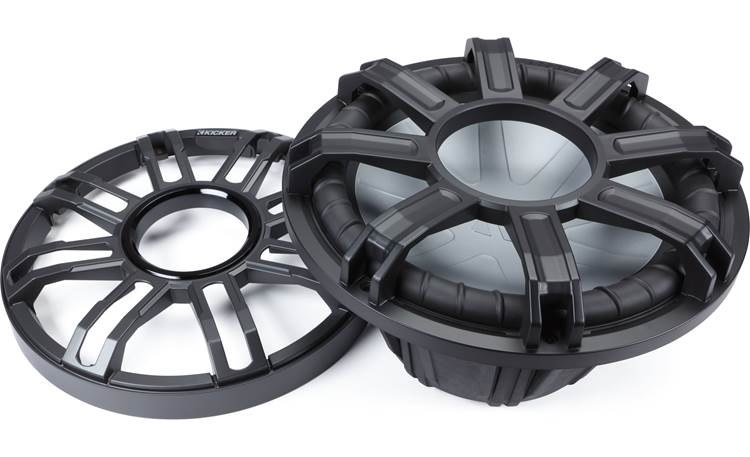

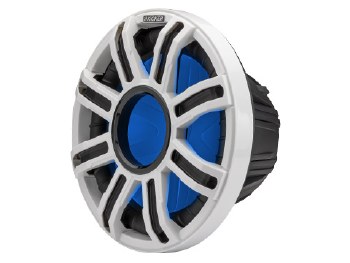

Optional Grille: The MWE124 includes a charcoal spoke-style grille, but can use the optional 51MWG12W white grille (sold separately).

• 12" marine subwoofer
• built-in RGBW LEDs (Red, Green, Blue, White)
• polypropylene cone with co-molded TPE surround
• glass-infused nylon woofer basket
• Kicker Real Marine designation for weather-proof construction under rigorous testing
• complies with ASTM standards for UV and salt/fog exposure (ASTM B117 200 hr. salt/fog test and ASTM G154 400 hr. accelerated UV test)
• designed for use in free-air applications (baffle may require a backing plate)
• handles up to 450 watts RMS (900 watts peak power)
• frequency response: 20-500 Hz
• sensitivity: 86 dB
• impedance: 4 ohms
• top-mount depth: 5.90"
• cutout diameter: 10.71"
• frame diameter: 12.75"
