KICKER
51LX5004
LX500.4 4-Channel Class-D Amplifier LXCC wired control center included Gain-match LED's show perfect gain setting Customize appearance with reversible center panel and choice of 11 RGB LED accent colors FIT technology accepting low and high-level inputs up to 40V 225W x 4 @ 2-Ohm 125W x 4 @ 4-Ohm 450 x 2 @ 4-Ohm BridgedH 2-3/8" x W 8-7/16" x L 9-7/16"
- Powerful 4-Channel Performance: The LX500.4 delivers 225W x 4 @ 2Ω and 450W x 2 @ 4Ω bridged, providing clean, high-output power for your speakers with precision and clarity.
- Advanced System Control with LXCC: The included LX Control Center (LXCC) allows real-time monitoring of battery voltage, amp temperature, protection status, and gain adjustments for precise tuning and optimized performance.
- High-Efficiency Class-D Technology: Designed for lower power consumption, reduced heat output, and extended playtimes, ensuring reliable performance without sacrificing sound quality.
- Crystal-Clear Sound with FIT+ Technology: Eliminates unwanted noise and interference while accepting high- and low-level signals up to 40V, delivering distortion-free audio even in complex installations.
- Customizable Look and Built-in Protections: Features a reversible center panel with 11 RGB LED accent colors, multiple turn-on modes, and comprehensive protection against thermal, circuit, and voltage instability for long-lasting reliability.
- LX Series Class D 2 ohm Stable 4-Channel Amplifier
- RMS Power Rating:
- 4 ohm: 125 watts x 4 channel
- 2 ohm: 225 watts x 4 channel
- Bridged: 450 watts x 2 channel @ 4 ohm
- Total RMS power output: 900 watts
- LED Power/Protect Light
- 2 pairs of pre-amp outputs
- Speaker-level (high-level) inputs
- Reversible center panel and choose between 11 RGB LED accent colors
- Thermal, circuit and voltage stability protection

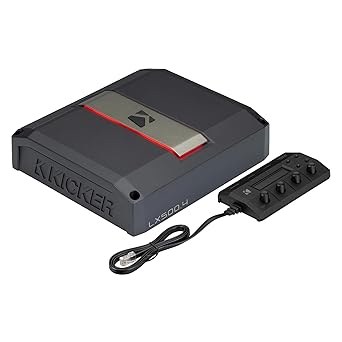

- Wired LX Control Center (LXCC) included
- Diagnostic readout for battery voltage, LED output clip indication, temperature and protection status
- Adjust gain trim, left-channel time delay, and selectable crossover type, slope and frequency
- Thermal, circuit and voltage stability protection
- Input sensitivity:
- Low level: 125 mV - 5 volts
- High level: 1 - 40 volts
- Frequency Response: 20 - 20000 Hz
- Total Harmonic Distortion (THD): <1%
- Signal to Noise Ratio: 75 dB
- Variable high-pass filter: 20 - 5000 Hz
- Variable low-pass filter: 40 - 5000 Hz
- Fuse Rating: 80A
- 4 AWG gauge amplifier wiring kit is recommended for installation
- Dimensions: 9-7/16" L x 8-7/16" W x 2-3/8" H
