KICKER
51LX13007

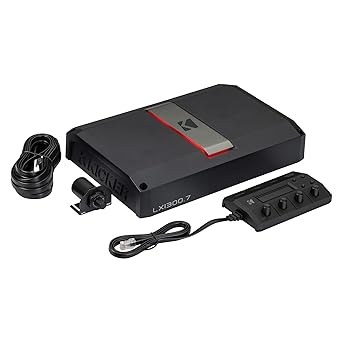

LX1300.7 7-Channel Class-D Amplifier LXRC Dash Remote Included LXCC wired control center included Gain-match LED's show perfect gain setting, Customize appearance with reversible center panel and choice of 11 RGB LED accent colors FIT technology accepting low and high-level inputs up to 40V Amp 1 & Amp 2 Stereo Channels 150W x 4 @2-Ohm 125W x 4 @ 4-Ohm Amp 3 Stereo Pair 65W x 2 @ 2-Ohm 65W @ 4-Ohm 130W x 1 4-Ohm Bridged Sub Channel 700W @ 1-Ohm 550W @ 2-Ohm 300W @ 4-Ohm H 2-3/8" x W 8-7/16" x L 12-5/8"
- Versatile 7-Channel Power for Complete System Control: Delivers 150W x 4 @ 2Ω for full-range speakers, 65W x 2 @ 2Ω for midrange or tweeters, and 700W @ 1Ω for subwoofers, making it the ultimate all-in-one amplifier for high-performance audio setups.
- Advanced System Monitoring and Control: The included LX Control Center (LXCC) provides real-time monitoring of battery voltage, amplifier temperature, and protection status, while allowing precise gain and crossover adjustments for optimal performance.
- Precision Bass Management with SHOCwave2.0: The LX Remote Control (LXRC) lets you adjust bass levels instantly while SHOCwave2.0 digital bass restoration recovers lost low-end frequencies, delivering deeper and fuller bass response.
- High-Efficiency Class-D Performance: Engineered for lower current draw and reduced heat, this amplifier maximizes power efficiency while maintaining clear, distortion-free sound, even during extended playtimes.
- Customizable Look and Noise-Free Operation: Features a reversible center panel with 11 RGB LED accent colors for a personalized aesthetic, while FIT+ technology eliminates unwanted noise and accepts signals up to 40V for crystal-clear audio.
- LX Series Class D 2 ohms Stable 7-Channel Amplifier
- RMS Power Rating:
- 4 ohms: 125 watts x 4 channel + 300 watts x 1 channel
- 2 ohms: 150 watts x 4 channel + 550 watts x 1 channel
- Bridged: 250 watts x 2 channel @ 4 ohms + 550 watts x 1 channel @ 2 ohms
- Amp 3 (stereo pair): 65 watts x 2 channel @ 4 ohms
- Amp 3 (stereo pair): 65 watts x 2 channel @ 2 ohms
- Amp 3 (stereo pair) Bridged: 130 watts x 1 channel @ 4 ohms
- Total power output: 1150 watts
- LED Power/Protect Light
- Wired bass level remote control included
- Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
- 1 pair of pre-amp outputs
- Signal sensing remote turn-on
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Incrementally dial in entire system with the included LX Control Center
- Monitor and adjust sub section with the included LXRC Dash Remote
- Customize the appearance with reversible center panel and choice of 11 RGB LED
- Equipped with FIT+ technology, accepting low- and high-level signals up to 40V
- Input sensitivity:
- Low level: 125mV - 5 volts
- High level: 1 - 40 volts
- Frequency Response: 20 - 20000 Hz
- Total Harmonic Distortion (THD): 1%
- Signal to Noise Ratio: >75 dB
- Variable high-pass filter: 20 - 5000 Hz
- Variable low-pass filter: 40 - 5000 Hz
- Subsonic filter: 10 - 80 Hz
- Variable Bass Boost: 0 - 6 dB
- Fuse Rating: 150A
- 1/0 AWG gauge amplifier wiring kit is recommended for installation
