51KSS365

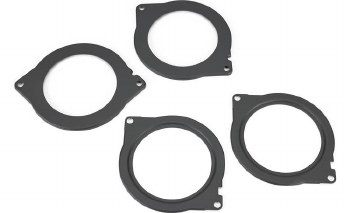

Custom Brackets: The KSS365 is designed as a factory replacement speaker system. The included 6½" woofers are typically installed in the front doors. The included mounting brackets are compatible with many Chrysler, GM, Jeep, Subaru and Toyota vehicles. The multi-purpose brackets are scored for trimming to fit several applications. Please enter your vehicle information to confirm fit.

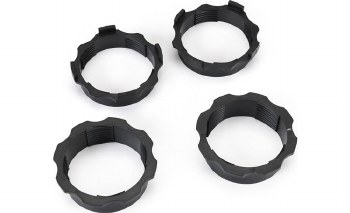

Midrange: The included 2¾" speakers replace the factory midrange or tweeters. Three sets of brackets are included, so they're drop-in replacements for many Chrysler, GM, Jeep, Subaru and Toyota vehicles.

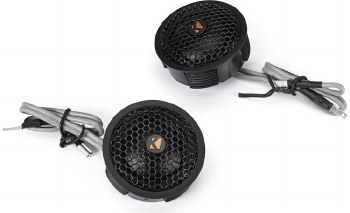

Tweeter Mounting Options: The tweeters include brackets to allow multiple mounting configurations; flush-mount, angle-mount, and surface-mount. The surface mount pods are mounted to a threaded, hollow shaft and have a ball-and-socket joint, so they can be turned in any direction, and angled to approximately 40˚.

Tweeter Dimensions:

Crossover Network: Individual crossovers are included for each of the woofers, midrange, and tweeters, wired in-line with the included speaker wires. The output end of each woofer crossover wire has quick slides that plug directly onto the woofer terminals. The output end of each midrange and tweeter crossover wire also has quick slides; in this case they plug into the terminals of the wires attached to the midrange and tweeters. Each crossover is labeled Woofer, Midrange, or Tweeter. The input ends of the wires are not terminated.

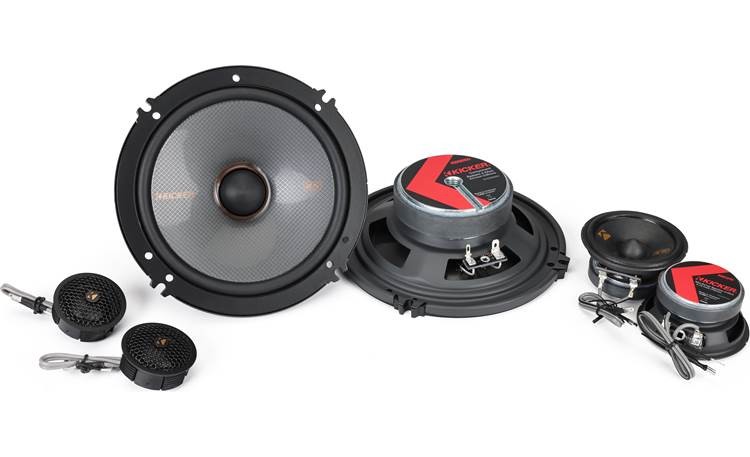

• 3-way component speaker system
  • 6-1/2" woofer cone with rubber surround
  • 2-3/4" midrange driver with inline crossover
  • 1" tweeter with inline crossover
• handles up to 80 watts RMS (160 watts peak power)
• frequency range: 35-21,000 Hz
• sensitivity: 91 dB
• tweeter top-mount depth: 0.60"
• woofer top-mount depth: 1.778"
• brackets included for woofers, midrange drivers, and tweeters to fit a wide range of vehicles
• grilles not included for midrange drivers
• impedance: 4 ohms
