50CVX104

Cooling: Kicker engineers developed a Forced Air Cooling system, using the motor structure to pull air across the voice coils, helping the sub run up to 20% cooler than the previous model.

Dual Voice Coils: For increased system flexibility, the woofer has two 4Ω voice coils. When the voice coils are wired in parallel, the woofer presents a 2Ω load; when wired in series, the woofer presents an 8Ω load.

Sealed Enclosure: A sealed enclosure design gives the smoothest response with increased energy at the lowest frequencies (between 20 and 30 Hz).

• Minimum Volume: 0.8 ft³
• Maximum Volume: 1.25 ft³

Vented Enclosure: A vented enclosure design increases efficiency relative to sealed enclosures.

• Minimum Volume: 1.25 ft³ with a 2" x 10.5" x 20" slot port
• Maximum Volume: 1.75 ft³ with a 2.5" x 10.5" x 20" slot port

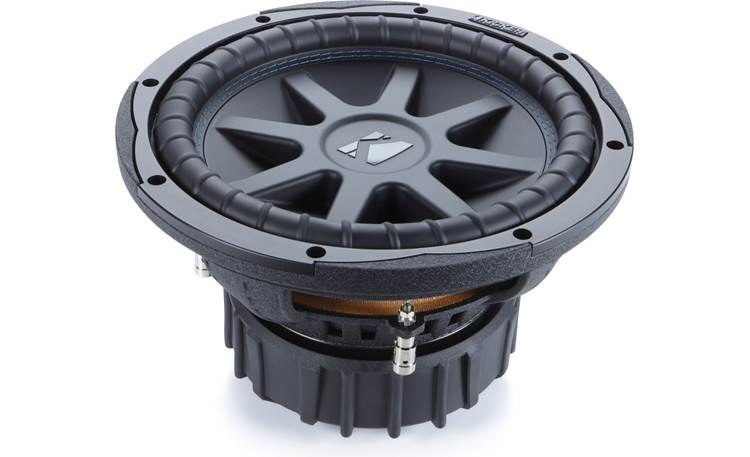

• 10" subwoofer with dual 4-ohm voice coils
• injection-molded polypropylene cone
• ribbed Santoprene rubber surround
• cast-aluminum basket
• power handling: 600 watts RMS (300 watts per coil)
• peak power handling: 1200 watts
• frequency response: 24-500 Hz
• sensitivity: 85.7 dB
• top-mount depth: 5.9"
• sealed box volume: 0.8 - 1.25 cu. ft.
• ported box volume: 1.25 - 1.75 cu. ft.
