49L7X102

Dual Voice Coils: For increased system flexibility, the woofer has two 2Ω voice coils. When the voice coils are wired in parallel, the woofer presents a 1Ω load; when wired in series, the woofer presents a 4Ω load.

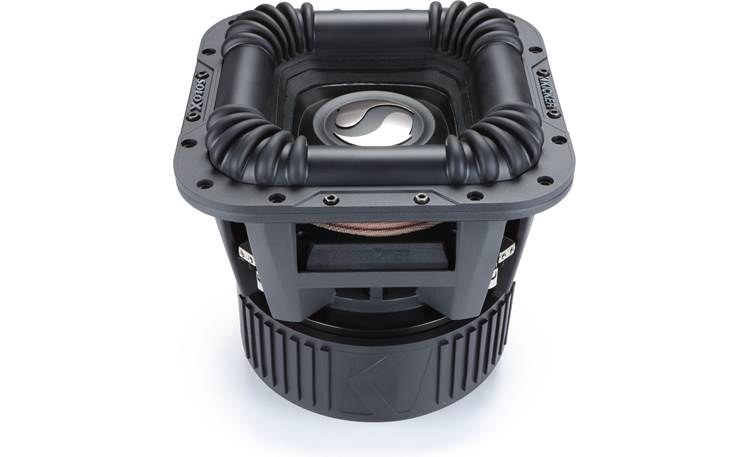

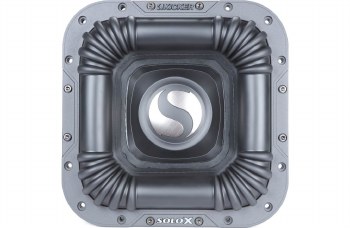

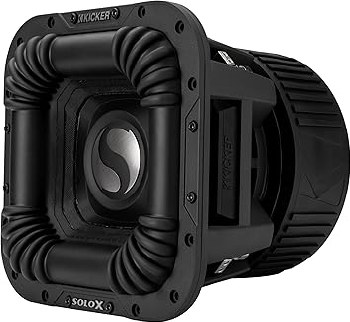

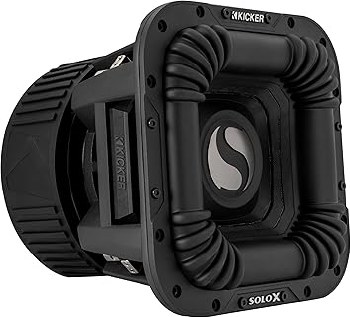

Square Design: By making the SoloX square, Kicker is giving you the most possible cone area (Sd) for a given size baffle, 16% to 20% more area than a conventional round subwoofer. More cone area means the cone moves more air, resulting in louder, deeper bass.

Terminals: There are two set screw terminals shorted to each spring terminal, making it easy to connect multiple subwoofers. Each terminal accepts bare wire up to 8-gauge.

Break-in Period: Due to the complex nature of Kicker's subwoofers, they require a break-in period in order to produce optimum bass response. The high-performance suspension system makes the speakers very stiff out-of-the-box. Approximately two weeks of daily playing will allow the suspension to break-in and reach its optimum equilibrium. A broken-in subwoofer will exhibit stronger bass performance, smoother response, and greater low-bass extension.

Enclosure: Kicker recommends a 2 ft³ ported enclosure with a 12¼" x 2½" x 38½" slot port, yielding a tuning frequency of 31 Hz.

Cutout: The woofer will not mount in a standard enclosure with a round cutout. Instead, the woofer must be mounted in an enclosure with a 9¼" x 9¼" square opening.

• 10" subwoofer with dual 2-ohm voice coils
• double-pressed pulp cone with Santoprene rubber surround
• dual-spider suspension
• cast aluminum basket
• power handling: 2000 watts RMS (4000 watts peak)
• frequency response: 25-100 Hz
• sensitivity: 82.39 dB
• top-mount depth: 9.44"
• mounting height: 1.7"
• cutout width: 9.25"
• ported box volume: 2 cu. ft.
• Field-Replaceable Recone Kit available (sold separately)
• grille not included
