48KXMA8008

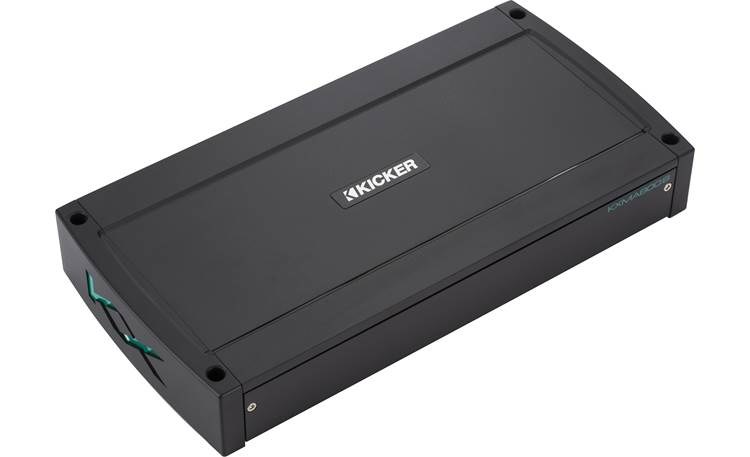

Marine Amplifier: The Kicker KXMA800.8 (48KXMA8008) is an 8-channel marine amplifier, effectively four 2-channel amplifiers built into one chassis (labeled Amp1, Amp2, Amp3 and Amp4). Any pair of channels can be bridged, so it can be configured to power 8-channels, 7-channels, 6-channels, 5-channels, or 4-channels. The KXMA series amps are designed for the marine environment and include ABYC/NMMA-compliant power and ground terminals, anti-corrosive inputs and outputs, gasket protected controls, conformal-coated circuit boards, stainless-steel mounting screws, and a UV-treated aluminum chassis.

Note: Keep in mind, marine amplifiers are not waterproof, and should not be mounted where they will likely get wet.

Class D Amplification: This amp features a Class-D design, efficiently providing ample power in a compact chassis. The power output is as follows:

• 50 watts RMS x 8 into 4 Ohms (1 kHz, @14.4V, ≤ 1% THD+N)
• 100 watts RMS x 8 into 2 Ohms (1 kHz, @14.4V, ≤ 1% THD+N)
• 200 watts RMS x 4 into 4 Ohms bridged (1 kHz, @14.4V, ≤ 1% THD+N)

Controls & Indicators:

• Input Level: two 2-position switches; select High (speaker-level) or Low (line-level) for Amp1/Amp2 and Amp3/Amp4 independently
• Fader: three On/Off switches; used to set the number of input channels connected; with all set to Off, the Amp1 input feeds all channels; if switched to On, that amp's input will be independent
• Auto Turn-on: one 3-position switch:
  • +12V: amp turns on when +12 volts is supplied to the remote (REM) terminal on the amp (preferred method)
  • DC Offset: amp turns on when it sees the DC Offset voltage from a speaker-level input signal (typically the second best option)
  • Audio (Signal Sense): amp turns on when it detects audio from a speaker-level input signal (input gain must be set correctly for this method to work)

    Note: If using either the DC Offset or Audio methods of powering the amplifier On/Off, the REM terminal becomes a +12V output that can be used for activating additional amplifiers.

• Protection LED (PRT): red Protect LED indicates a problem:
  • Flickering: indicates low-voltage from the battery, either from a low battery or a weak power/ground connection
  • On Solid: indicates overheating, shorted speaker output, or voltage not in the 10-16 volt range
• Amp1/Amp2 Controls: Amp1 and Amp2 have identical, but independent controls:
  • Input Gain: rotary dial; continuously variable from 125mV to 5V with the Input Level switch set to Low; 250mV to 10V with the Input Level switch set to High; each gain control has an LED backlight to indicate the signal is clipping
  • Crossover Switch: 3-position switch; select Off, High Pass, or Low Pass; the slope is 24dB/octave
  • Frequency: rotary dial; range depends on Frequency Range switch; continuously variable from 10-500 Hz (x1), or 100-5,000 Hz (x10)
  • Frequency Range: 2-position switch; sets the frequency range for the filter to x1 or x10
  • KickEQ+ Bass Boost: rotary dial; increase the bass level between 0dB and +6dB; centered at 40 Hz
• Amp3/Amp4 Controls: Amp3 and Amp4 also have identical, but independent controls:
  • Input Gain: rotary dial; continuously variable from 125mV to 5V with the Input Level switch set to Low; 250mV to 10V with the Input Level switch set to High; each gain control has an LED backlight to indicate the signal is clipping
  • Crossover Switch: 4-position switch; select Off, High Pass, Low Pass, or Bandpass; the slope is 24dB/octave
  • HP Frequency: rotary dial; continuously variable from 10-500 Hz
  • LP Frequency: rotary dial; range depends on Low-Pass Range switch; continuously variable from 40-500 Hz (x1), 400-5,000 Hz (x10)
  • Low-Pass Range: 2-position switch; sets the frequency range for the low-pass filter to x1 or x10
  • KickEQ+ Bass Boost: rotary dial; increase the bass level between 0dB and +6dB; centered at 40Hz

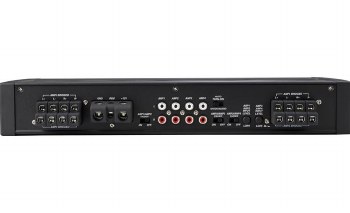

Wire Connections: The KXMA800.8 has screw-down terminals for the power, ground, turn-on (REM), and speaker outputs. The Power and Ground terminals accommodate up to 4-gauge wire (which Kicker recommends) and the remote and speaker terminals accommodate up to 8-gauge wire. The power and ground terminals are ABYC/NMMA compliant for marine installations.

Fuse: The amplifier doesn't have a fuse on the chassis, therefore a 125-amp fuse must be installed in-line on the power wire next to the battery.

Note: Currently Kicker will extend the standard warranty by an additional year (for a total of three years) when a qualifying Kicker installation kit is purchased with the amplifier.

Input Signal: The amp accepts either high (speaker-level) or low (line-level) voltage input signals on the four pair of RCA inputs, selectable using the input level switches on the side of the amp. When using a speaker-level input signal, add the optional Kicker KiSL speaker-level to RCA adapter (sold separately). The input sensitivity is 0.125-5 volts (low) or 0.25-10 volts (high).

Dimensions:

• Width: 14.73"
• Height: 2.19"
• Depth: 8.43" (8.78" including wire)

• 8-channel marine amplifier
• 50 watts RMS x 8 at 4 ohms (100 watts RMS x 8 at 2 ohms)
• 200 watts RMS x 4 bridged at 4 ohms (4-ohm stable in bridged mode)
• CEA-2006 compliant
• Class D amp technology
• gain knobs also function as clip lights
• Amp 1 and Amp 2:
  • variable high- or low-pass filter (10-500 Hz, 24 dB/octave), plus 10x switch
• Amp 3 and Amp 4:
  • variable high-pass filter (10-500 Hz, 24 dB/octave)
  • variable low-pass filter (40-500 Hz, 24 dB/octave), plus 10x switch
  • bandpass engages both high- and low-pass filters
• variable bass boost (0-6 dB at 40 Hz) on all channels
• weather-resistant conformal-coated circuit boards
• front-mounted controls protected behind gasket-sealed fold-down door
• Fail-Safe Integration Technology eliminates noise from your vehicle's electrical system
• preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
• power and ground terminals are ABYC/NMMA compliant for marine installations
• wiring, hardware, and fuse not included with amplifier
  • 4-gauge power and ground wires and a 125-amp fuse recommended
• dimensions: 14-3/4"W x 2-1/8"H x 8-5/16"D
