48KMA3604

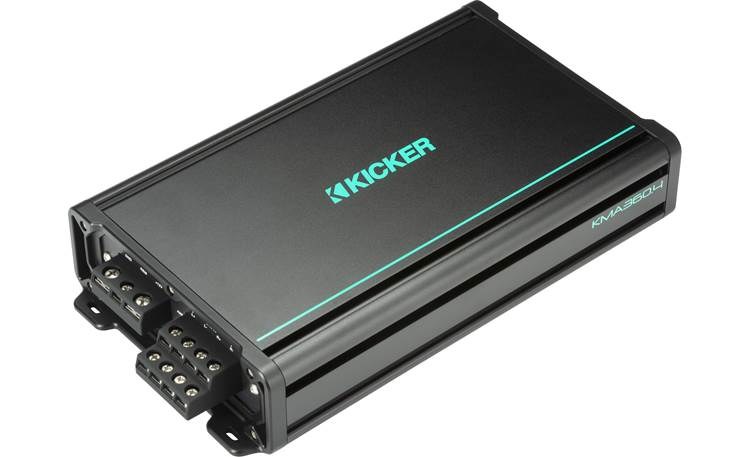

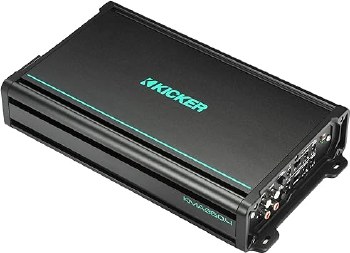

Marine Amplifier: The Kicker KMA360.4 (48KMA3604) 4-channel amplifier is effectively two full range 2-channel amps built into one chassis, labeled Amp 1 and Amp 2. Each section of the amp is bridgeable, so it can be wired as 4-channel, 3-channel, or 2-channel. Designed for the marine environment, the KMA360.4 features marine-grade speaker terminals, stainless-steel screws, conformal-coated circuit boards, and ABYC/NMMA-compliant power and ground connections.

Note: The Kicker KMA360.4 marine amplifier is not waterproof and should not be mounted where it will get wet.

Class AB Amplification: The KMA360.4 features state-of-the-art Class AB amplification which provides ample power in a compact chassis. The 4-channel amp can provide the following power output:

• 65 watts RMS x 4 @ 4 Ohms (@14.4V, ≤ 1% THD+N)
• 90 watts RMS x 4 @ 2 Ohms (@14.4V, ≤ 1% THD+N)
• 180 watts RMS x 2 @ 4 Ohms bridged (@14.4V, ≤ 1% THD+N)

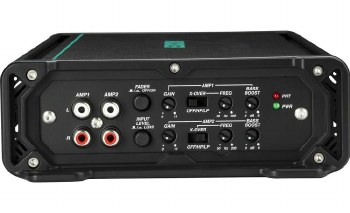

 Controls:

• Input Level: 2-position switch; select high (speaker-level) or low (line-level)
• Input Gain Control: independent rotary gain controls for Amp 1 and Amp 2; continuously variable from 250mV to 10V with the input level switch set to low; 1V to 40V with the input level switch set to high
• Crossover: independent 3-position switches for Amp 1 and Amp 2; select Off, High Pass, or Low Pass; the slope is 12dB/octave for both
• Frequency: separate rotary controls for Amp 1 and Amp 2; continuously variable from 50Hz-200Hz
• Fader: 2-position switch; turn on when using two pair of dedicated inputs; leave off when only using one pair of inputs
• Bass Boost: separate rotary controls for Amp 1 and Amp 2; increase the bass level between 0dB and +6dB; centered at 40Hz

Auto Turn-on: The amplifier has two methods of turning on: +12V and DC Offset. The preferred method is to run an 18-gauge wire from the remote turn-on lead of the source unit to the Remote (REM) terminal on the amp. When a +12V signal is detected on the wire, the amplifier will turn on. If your source unit lacks a remote turn-on lead (a factory head unit, for example), you can choose to turn on the amplifier via the DC Offset method. When a DC offset is detected (>2.5 volts) on the speaker-level inputs, the amplifier automatically turns on.

Wire Connections: The KMA360.4 has screw-down terminals for the power, ground, turn-on (REM), and speaker outputs. The power and ground slots are 0.512" wide and the remote and speaker slots are 0.335" wide. 8 AWG power and ground wires are recommended (sold separately).

External Fuse: The amplifier does not include a built-in fuse, therefore an external fuse should be placed on the power wire, within 18" of the battery. It is recommended that an 8-gauge amplifier wiring kit and a 60-amp external fuse be used when installing the amplifier.

Note: Currently Kicker will extend the standard warranty by an additional year (for a total of three years) when a qualifying Kicker Installation Kit is purchased with the amplifier.

Input Signal: The KMA360.4 accepts either high (speaker-level) or low (line-level) input signals on the two pair of RCA inputs (Amp 1, Amp 2), selectable using the input level switch on the end of the amp. When using a speaker-level input signal, add the optional Kicker KiSL speaker-level to RCA adapter. The input sensitivity is 250mV-10V (low) or 1V-40V (high).

Dimensions: When mounted horizontally, the KMA360.4 dimensions are:

• Width: 12.438" (not including wire)
• Height: 2.250"
• Depth: 6.625"

• 4-channel marine amplifier
  • 65 watts RMS x 4 at 4 ohms
  • 90 watts RMS x 4 at 2 ohms
  • 180 watts RMS x 2 bridged at 4 ohms (4-ohm stable in bridged mode)
• CEA-2006 compliant
• Class A/B design
• variable high-pass filter (50-200 Hz, 12 dB/octave)
• variable low-pass filter (50-200 Hz, 12 dB/octave)
• variable bass boost (0-6 dB at 40 Hz)
• weather-resistant conformal-coated circuit boards
• stainless-steel no-rust hardware
• preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input))
• wiring and hardware not included with amplifier
  • 8-gauge power and ground leads and a 60-amp fuse recommended
• dimensions: 12-1/2"W x 2-1/4"H x 6-5/8"D
