48DCVR122

Woofers: The Kicker 48DCVR122 enclosure uses two 12" CompVR series subwoofers. Each Kicker subwoofer features an injection-molded polypropylene cone with a Santoprene surround. The surround and cone are attached using Kicker's signature red double stitching, providing an outstanding bond.

Enclosure: The ported enclosure is made of heavy-duty MDF (Medium Density Fiberboard) with extensive internal bracing, providing exceptional acoustic efficiency and deep powerful bass. The enclosure is covered in sleek black carpeting for added protection and a refined look.

Forced Air Cooling: Kicker uses their SoloKon technology to join the cone to the vented back brace, creating a single integrated unit. This forces air through the motor assembly allowing it to run 25% cooler and helping eliminate distortion. Perimeter venting allows air to circulate around the base of the cone, while Kicker's UniPlate system helps redirect heat away from the motor.

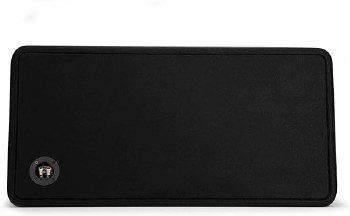

Speaker Terminals: A single pair of spring posts are mounted on the back of the enclosure and will accept pin connectors, single banana plugs, or bare wire up to 10-gauge in size.

Power: The dual CompVR subwoofers can handle 400-800W RMS (1600W peak), and are wired for a 2Ω load at the single pair of spring posts.

Break-in Period: Due to the complex nature of Kicker CompVR speakers, they require a break-in period in order to produce optimum low-bass response. The suspension system is very stiff out-of-the-box. Approximately two weeks of daily playing will allow the suspension to break-in and reach its optimum equilibrium. Once broken-in, the subwoofer will exhibit stronger bass performance, smoother response, and greater low-bass extension.

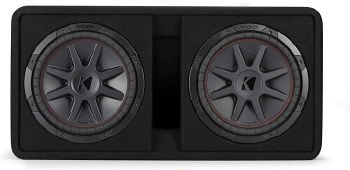

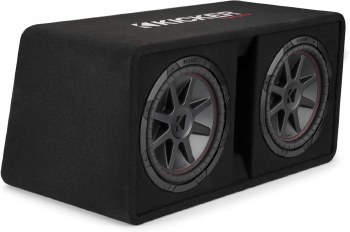

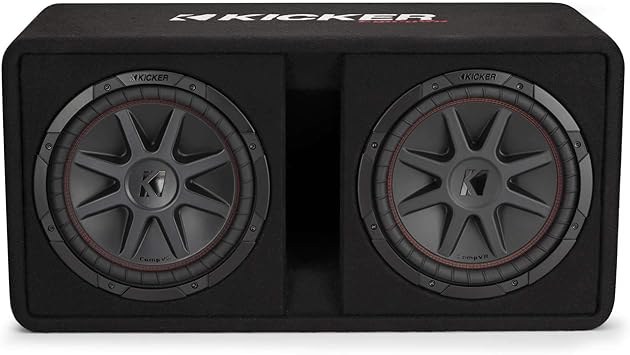

• ported enclosure with two 12" CompVR subwoofers
• medium-density fiberboard construction covered with carpet
• 2-ohm impedance
• power handling: 800 watts RMS (1600 watts peak power)
• frequency response: 25-500 Hz
• sensitivity: 98 dB

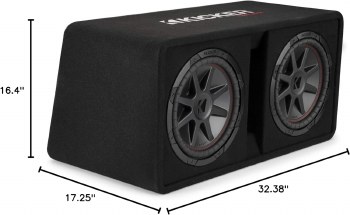

• 32.5"W x 16"H x 17"D1 x 14"D2
